Kentec LA81161M2 Syncro AS Lite - Apollo Protocol

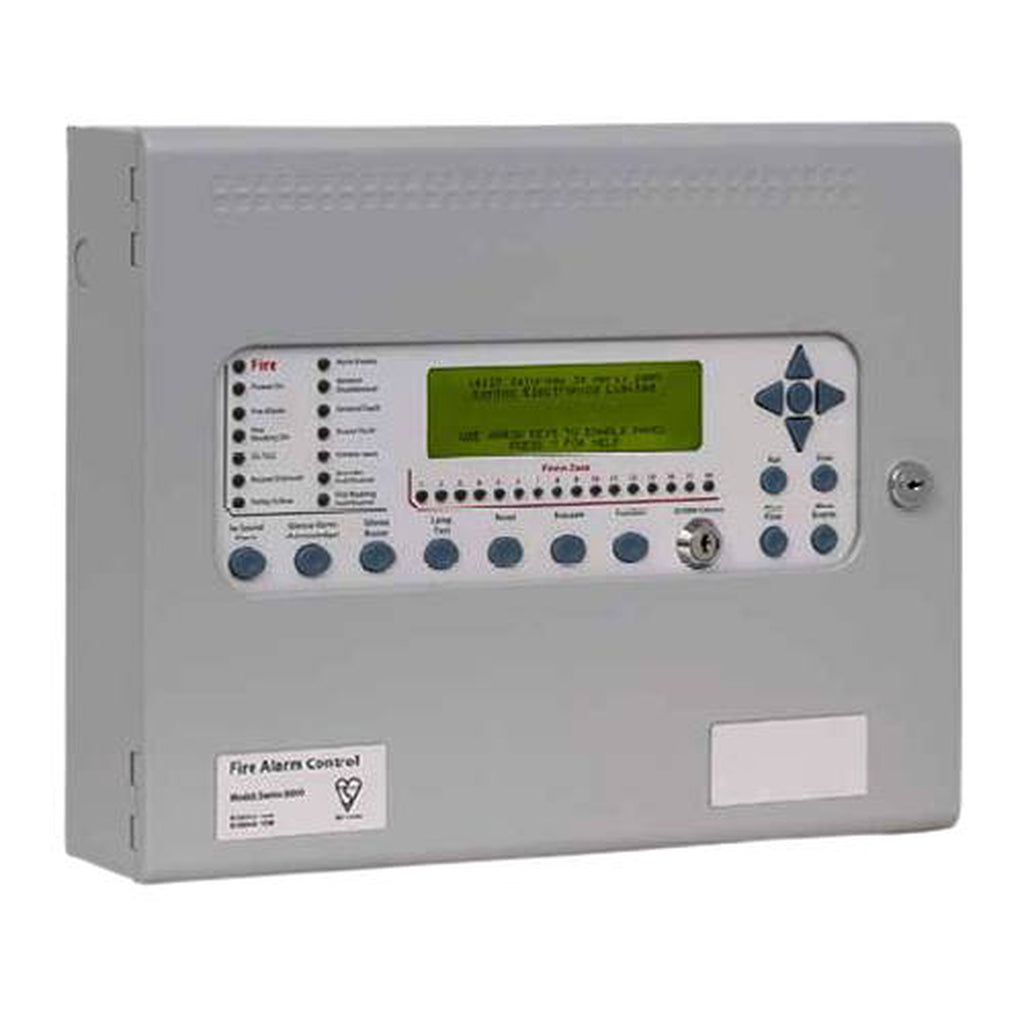

The Kentec Syncro AS Lite LA81161M2 is a single-loop analogue addressable fire alarm control panel for the Apollo protocol (S90, XP95 and Discovery), with 16 zones. It is the version without the enable control keyswitch. The Lite version is a cost-effective choice for smaller stand-alone sites that need only one detection loop.

On the Apollo protocol a loop supports up to 126 devices, including loop-powered sounders, call points and I/O modules. The panel is certified to EN 54-2 and EN 54-4.

Key features

• Single-loop analogue addressable panel with 16 zonal LEDs
• 5 programmable inputs, 3 programmable relays and 2 programmable sounder circuits
• Sensitivity adjustment and drift compensation
• Event log of the last 500 events
• Installer-friendly removable equipment chassis
• Configured from the front panel or with the Loop Explorer PC utility
• Approved and certified to EN 54-2 and EN 54-4

Technical specifications

• Protocol: Apollo S90, XP95, Discovery (up to 126 devices per loop)
• Zones: 16
• Product code: LA81161M2 (no enable keyswitch)
• Loop: 1 detection loop, 400 mA max.
• Enclosure: 1.2 mm mild sheet steel, epoxy powder coated, IP30; BS 00 A 05 grey
• Dimensions: 385 x 310 x 90 mm
• Display: 8 lines of 40 characters graphic LCD
• Mains supply: 110 or 230 V AC, 50 or 60 Hz (default 230 V); mains fuse 1.6 A
• Power supply: 24 V DC, 3 A
• Batteries: 2 x 12 V, max. 9 Ah (non-networked)
• Aux 25 V supply: fused at 500 mA
• Sounder outputs: fused at 1 A each
• Fault, fire and alarm contacts: 30 V DC 1 A
• Remote inputs (switched -ve): silence, fault, reset, alert and evacuate
• Ports: RS232 PC port; RS485 serial expansion port for Syncro I/O modules
