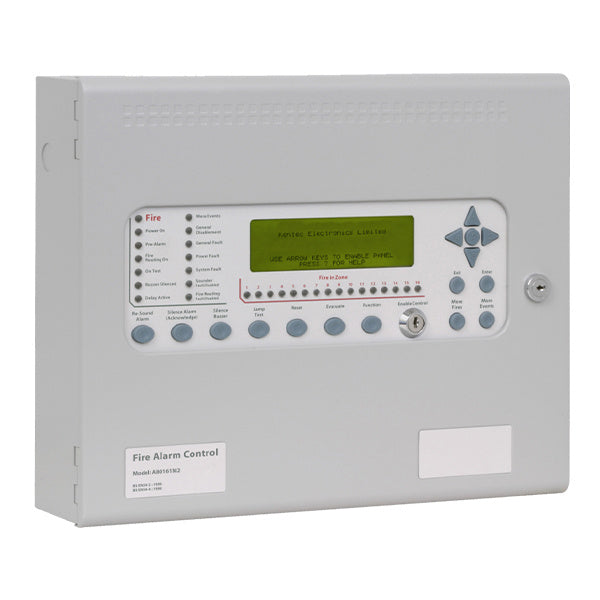

Kentec Syncro AS Lite 1 Loop Fire Panel c/w Enable Keyswitch (Hochiki Protocol) (LH80161M2)

The Kentec Syncro AS Lite LH80161M2 is a single loop analogue addressable fire alarm control panel for Hochiki protocol devices, supplied with an enable control keyswitch. Syncro AS Lite is the cost-effective version of Syncro AS for smaller standalone installations that need only one detection loop. It is approved and certified to EN54-2 and EN54-4.

Key features

• 1 detection loop and 16 zones for Hochiki ESP devices
• Enable control keyswitch fitted
• 2 programmable sounder circuits, 5 programmable inputs and 3 programmable relays
• 3A power supply
• Sensitivity adjustment and drift compensation
• Stores the last 500 events in the event log
• Installer friendly, removable equipment chassis
• Approved and certified to EN54-2 and EN54-4
• Note: network, loop expansion, Syncro I/O modules and View repeaters are not available on the Lite version

Technical specifications

• Loops: 1; zones: 16
• Protocol: Hochiki ESP
• Mains supply: 110 or 230V AC 50 or 60Hz (default 230V)
• Mains supply fuse: 1.6A 250V
• Power supply DC rating: 24V 3A
• Aux 25V supply: fused at 500mA
• Batteries: two 12V, 9Ah max (non-networked)
• Detection loop output: 400mA
• Sounder outputs: fused at 1A each
• Fault, fire and alarm contacts: 30V DC 1A
• Remote inputs (silence, fault, reset, alert, evacuate): switched -ve
• Display: 8 lines of 40 characters graphic LCD
• PC and printer ports: serial RS232; serial expansion port: RS485
• Configuration: via Loop Explorer PC utility (download lead S187 standard or X187LS economy)
• Dimensions: 385 x 310 x 90mm; weight 6kg
• Construction: 1.2mm mild sheet steel, epoxy powder coated, BS 00 A 05 grey
• IP rating: IP30
