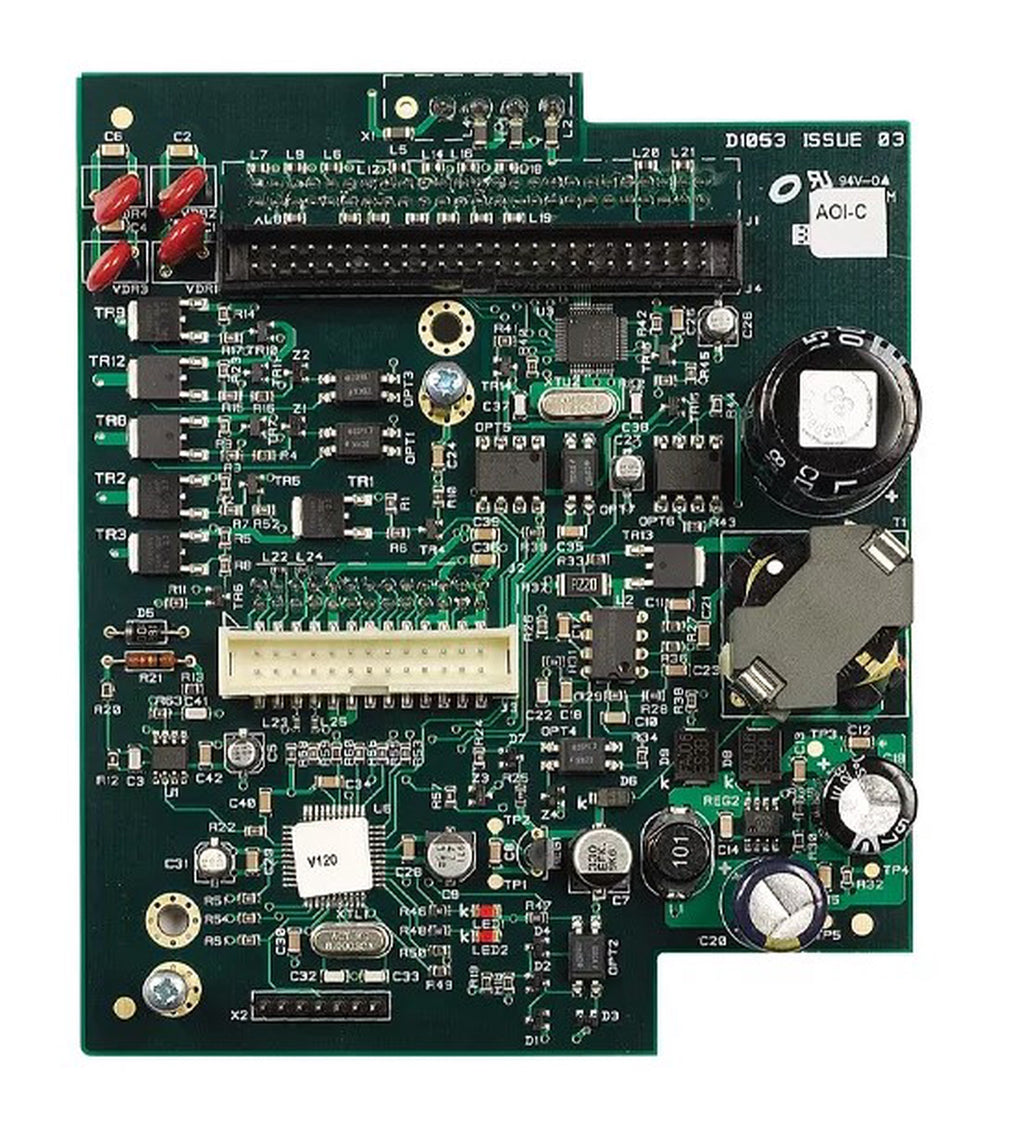

The Kentec K586V is a loop 2 expansion card for the Argus Vega protocol. It adds a second detection loop to a single-loop Kentec Syncro AS analogue addressable fire alarm control panel.
Kentec specifies that an additional loop card must use the same protocol as the panel's existing loop. Loop expansion is not available on the Syncro AS Lite. With two Argus Vega loops, the panel supports up to 480 devices.
Key features
- Adds a second Argus Vega detection loop to a single-loop Syncro AS panel
- Must match the protocol of the panel's existing loop
- Mounts directly on the Syncro AS main board (connectors X7 and X8), fixed with the M3 screws and fibre washers supplied
- If a network card is fitted, it is refitted on top of the loop card
- New loop devices are added to the configuration with Loop Explorer software
Technical specifications
- Product code: K586V
- Protocol: Argus Vega (address range 1 to 240 per loop)
- Detection loop current: 400 mA max.
- Recommended loop cable: screened fire-resistant cable such as FP200
