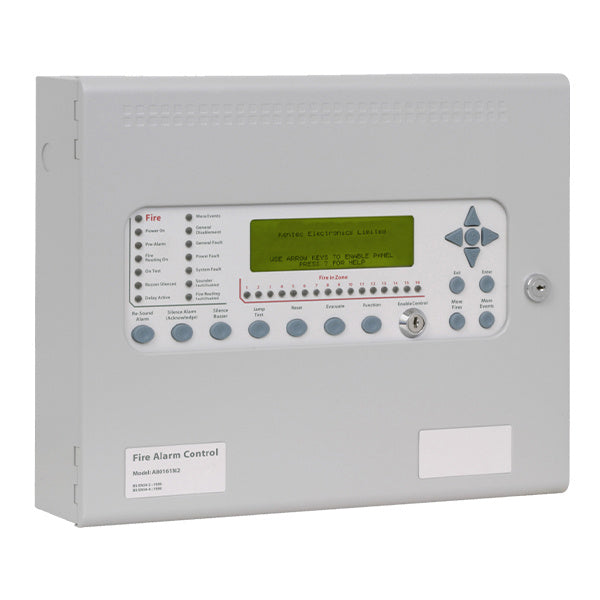

The Kentec Syncro AS Lite LA80161M2 is a single loop analogue addressable fire alarm control panel for Apollo protocol devices, supplied with an enable control keyswitch. Syncro AS Lite is the cost-effective version of Syncro AS for smaller standalone installations that need only one detection loop. It is approved and certified to EN54-2 and EN54-4.
Key features
- 1 detection loop and 16 zones for Apollo (S90, XP95, Discovery) devices
- Enable control keyswitch fitted
- 2 programmable sounder circuits, 5 programmable inputs and 3 programmable relays
- 3A power supply
- Sensitivity adjustment and drift compensation
- Stores the last 500 events in the event log
- Installer friendly, removable equipment chassis
- Approved and certified to EN54-2 and EN54-4
- Note: network, loop expansion, Syncro I/O modules and View repeaters are not available on the Lite version
Technical specifications
- Loops: 1; zones: 16
- Protocol: Apollo (S90, XP95, Discovery)
- Mains supply: 110 or 230V AC 50 or 60Hz (default 230V)
- Mains supply fuse: 1.6A 250V
- Power supply DC rating: 24V 3A
- Aux 25V supply: fused at 500mA
- Batteries: two 12V, 9Ah max (non-networked)
- Detection loop output: 400mA
- Sounder outputs: fused at 1A each
- Fault, fire and alarm contacts: 30V DC 1A
- Remote inputs (silence, fault, reset, alert, evacuate): switched -ve
- Display: 8 lines of 40 characters graphic LCD
- PC and printer ports: serial RS232; serial expansion port: RS485
- Configuration: via Loop Explorer PC utility (download lead S187 standard or X187LS economy)
- Dimensions: 385 x 310 x 90mm; weight 6kg
- Construction: 1.2mm mild sheet steel, epoxy powder coated, BS 00 A 05 grey
- IP rating: IP30
