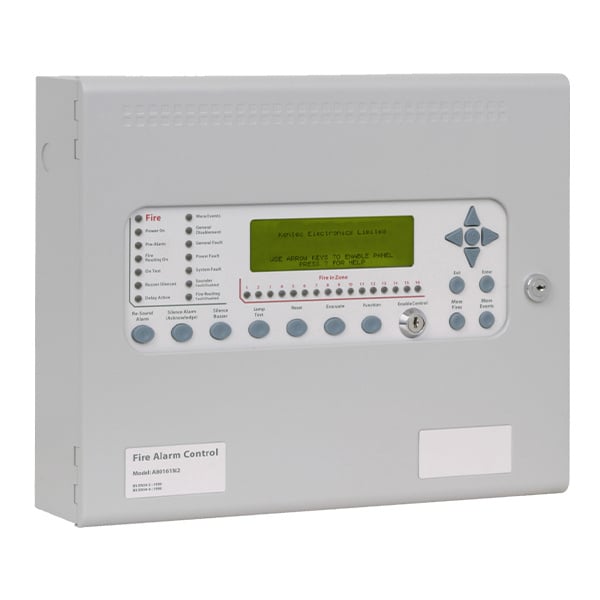

Kentec Syncro AS Lite 1 Loop Fire Panel c/w Enable Keyswitch (Argus Vega Protocol) (LV80161M2)

The Kentec Syncro AS Lite LV80161M2 is a single-loop analogue addressable fire alarm control panel for the Argus Vega protocol. It has 16 zones and an enable control keyswitch. The Lite version is a cost-effective choice for smaller stand-alone sites that need only one detection loop.

On the Argus Vega protocol each loop has an address range of 1 to 240 devices. The panel supports loop-powered sounders, call points and I/O modules. It is certified to EN 54-2 and EN 54-4.

Key features

• Single-loop analogue addressable panel with 16 zonal LEDs
• 5 programmable inputs, 3 programmable relays and 2 programmable sounder circuits
• Sensitivity adjustment and drift compensation
• Event log of the last 500 events
• Installer-friendly removable equipment chassis
• Configured from the front panel or with the Loop Explorer PC utility
• Approved and certified to EN 54-2 and EN 54-4
• Enable control keyswitch fitted

Technical specifications

• Protocol: Argus Vega (up to 240 devices per loop)
• Zones: 16
• Loop: 1 detection loop, 400 mA max.
• Enclosure: 1.2 mm mild sheet steel, epoxy powder coated, IP30; BS 00 A 05 grey
• Dimensions: 385 x 310 x 90 mm
• Display: 8 lines of 40 characters graphic LCD
• Mains supply: 110 or 230 V AC, 50 or 60 Hz (default 230 V); mains fuse 1.6 A
• Power supply: 24 V DC, 3 A
• Batteries: 2 x 12 V, max. 9 Ah (non-networked)
• Aux 25 V supply: fused at 500 mA
• Sounder outputs: fused at 1 A each
• Fault, fire and alarm contacts: 30 V DC 1 A
• Remote inputs (switched -ve): silence, fault, reset, alert and evacuate
• Ports: RS232 PC port; RS485 serial expansion port for Syncro I/O modules
