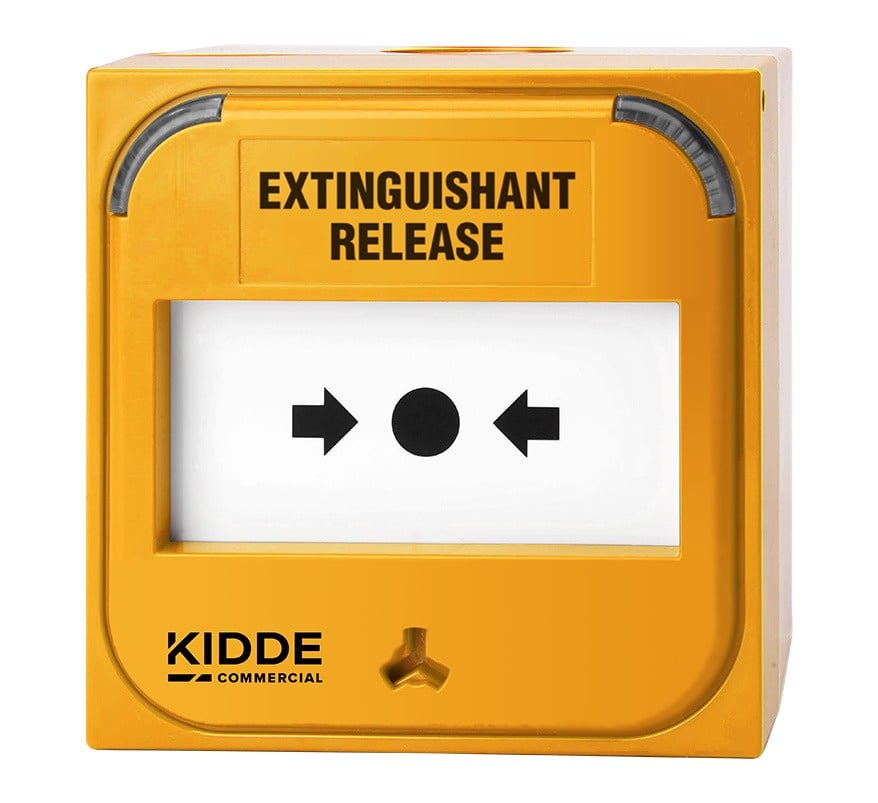

The Kidde KE-DM3010YS99 is a yellow, single-action Excellence series intelligent addressable manual call point for indoor use, marked for extinguishant release. It is supplied with a resettable element, test connector and test key, and works on Kidde Excellence systems and legacy Aritech fire systems.
Key features
- Single-action MCP for surface or recess mounting
- Dual tri-colour LEDs with 180° visibility, plus alarm flag on the face
- Tamper-resistant design with resettable or frangible element
- Front-facing test facility; test key doubles as a disassembly tool
- Back box with rear, top and bottom cable entry and screen terminal
- Pluggable connector with link-through for pre-commissioning testing
- Up to 128 devices per loop
Technical specifications
- Compatibility: Kidde Excellence and legacy Aritech fire systems
- Addressing: DIP switches
- Operating voltage: 17 to 29 V DC
- Current consumption: 180 µA quiescent, 2.8 mA alarm
- Response time: <3 s
- Dimensions: 87 x 87 x 26 mm (87 x 87 x 57 mm with back box)
- Weight: 110 g (170 g with back box)
- Colour: yellow (RAL 1003), flame-retardant ABS
- Functional marking: EXTINGUISHANT RELEASE
- Operating temperature: -25 to +72°C
- IP rating: IP41
What's in the box
- Manual call point with resettable element
- Test connector
- Test key
