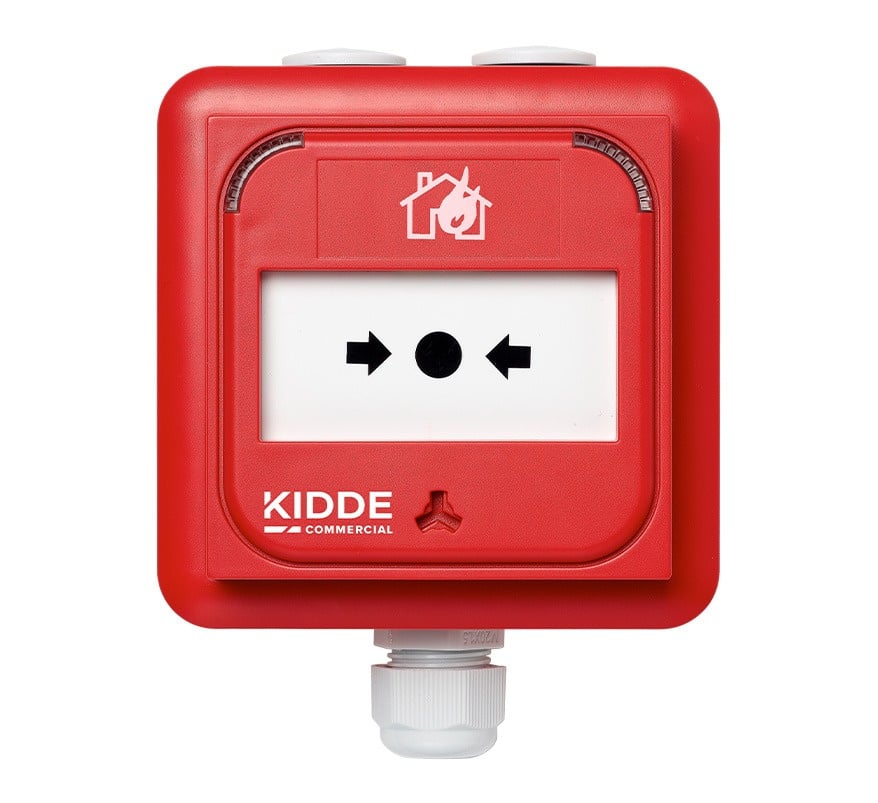

The Kidde KE-DM3010R-IP is a red, weatherproof, single-action intelligent addressable manual call point from the Kidde Excellence Series, marked with the House on Fire symbol. Rated IP67 for indoor and outdoor use, it connects to a 2-wire addressable loop and works with Kidde Commercial Excellence Series fire systems and legacy Aritech fire systems. It is certified to EN 54-11.
Key features
- Single-action call point for surface mounting, suitable indoors and outdoors
- Dual tri-colour status LEDs give 180° visibility of alarm, isolated, fault and communication states
- Alarm flag on the front shows activation even without the LEDs
- Tamper-resistant design with resettable element (frangible element option)
- Front-facing test facility with no-tools maintenance using the test key
- Back box with top and bottom threaded cable entries and a screen connection terminal for electrically noisy installations
- Pluggable connector with link-through for easy installation and pre-commissioning testing
- DIP switch addressing; up to 128 devices per loop
Technical specifications
- Compatibility: Kidde Excellence and legacy Aritech series fire systems
- Power supply: loop powered, 17 to 29 VDC
- Communication voltage: 4 to 11 V pulsed
- Current consumption: 180 μA quiescent, 2.8 mA alarm
- Cable: 2 cores, 0.404 to 2.05 mm; 4 terminals (A+/A-, B+/B-)
- Response time: less than 3 s
- Cable entries: 1 x threaded entry (top or bottom) and 2 x threaded entries (bottom or top)
- Dimensions: 108 x 108 x 69 mm
- Weight: 267 g (with back box)
- Colour: red (RAL 3028)
- Body material: flame-retardant ABS
- Operating and storage temperature: −25 to +72°C
- Relative humidity: 10 to 95% non-condensing
- IP rating: IP67
- Standards and certification: EN 54-11, CPR; CE, REACH, RoHS 3, WEEE
