Knight Fire H20A G2 Alu Angle Contact, 0.5m Armoured 6-Wire, DPST
SKU: H20ABrand: Knight Fire & Security
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 21 | 2 to 3 working days |
Knight Fire H20A G2 Alu Angle Contact, 0.5m Armoured 6-Wire, DPST
£21.40
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Armoured 6-Wire (4x Switch, 2x Tamper)
- DPST Operation
- Aluminium Housings
- Angle Fitting
- Made in UK
- Environmental Class III
Frequently bought together
Knight Fire & Security
Knight Fire J310 G3 Conduit Junction Box, 8+2 Way Terminals, W/Proof, White
Sale price£4.00
In stock
Knight Fire & Security
Knight Fire J40 G2 Junction Box, 5+2 Way Screws, White
Sale price£1.50
In stockProduct details

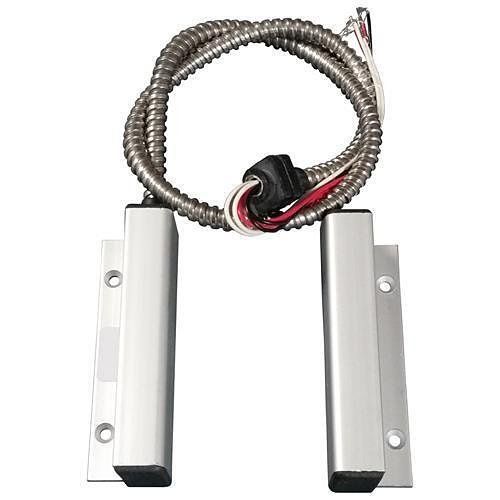

H20A is a heavy-duty angle contact that comes complete with 50cm of armoured wiring. Internals are enclosed in a cast aluminium housing. The armoured 6-wire setup makes EOL resistors easy to add for a supervised circuit, using a suitable JB to house the additional wiring.
This double reed variant operates in DPST configuration, allowing two separate circuits to be switched simultaneously. See code H10A for the single reed, SPST variant.
Main Features
- Armoured 6-Wire (4x Switch, 2x Tamper)
- DPST Operation
- Aluminium Housings
- Angle Fitting
- Made in UK
- Environmental Class III
Specifications
| Application/Usage | Door; Window |
|---|---|
| Connectivity Technology | Wired |
| Contact Type | Form A (SPST-NO) |
| Energy Star | No |
| Environmental Certification | Environmental Class III (Outdoor Sheltered) |
| Indoor/Outdoor | Indoor |
| Limited Warranty | 1-Year |
| Material | Aluminium; Stainless Steel |
| Mount Type | Surface Mount |
| Product Line | Angle Contact |
| Product Series | H |
| Product Type | Angle Contact |
| Security Grade | Grade 2 |
| Standard Gap | 50.00mm |
| TAA Compliant | No |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | Silver |
| INCERT Certified | No |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Knight Fire H20A G2 Alu Angle Contact, 0.5m Armoured 6-Wire, DPST Product datasheet · H20A · PDF Open datasheet
