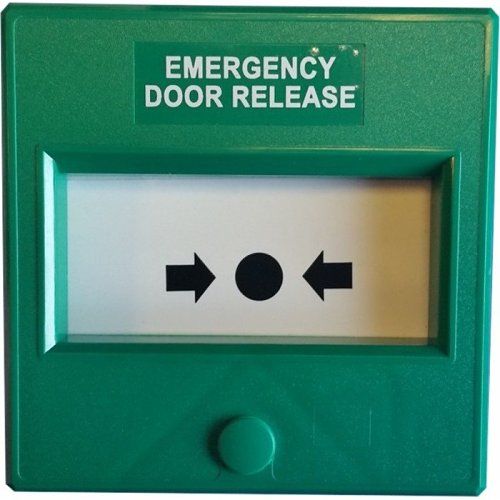

A single-pole, resettable call point designed for surface mounting. SPDT operation (C, NO, NC) with no resistors (dry/voltage-free).
Each unit includes a suitable back box, MX001 key, MX004 element, front cam cover, and fitting screws for attaching the main unit to the back box. Once activated, the unit can be reset with the provided key – no need to replace broken elements.
A weatherproof variant is available for outdoor use – see code MX57SWGS.
Main Features
SPDT Operation
Resettable
Dry/Resistorless
Made in UK
No LED
87 x 87 x 53mm
MX004: Resettable plate insert replacements (pack of 10)
MX004: Resettable plate insert replacements (pack of 10)
Specifications
Application/Usage
Egress/Door Release
Connectivity Technology
Wired
Contact Type
Form C (SPDT); SPDT (Single Pole Double Throw)
Energy Star
No
Features
Resettable Insert Plate; Single Pole; Surface Mount
