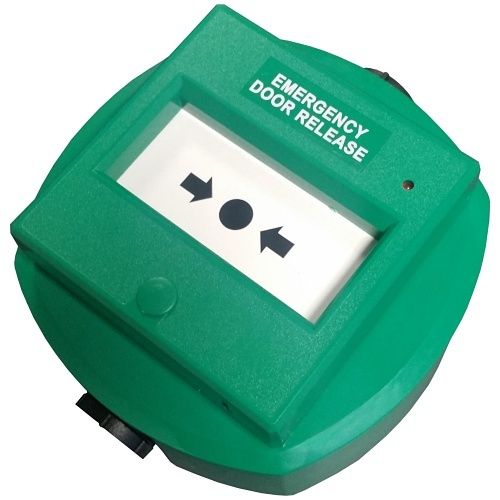

A double pole, resettable call point designed for outdoor use. DPDT operation (C, NO, NC). One pole is reserved for the buzzer and LED circuit, while the other has no additional components on the line (dry/voltage-free).
Each unit includes a suitable back box, MX001 key, MX004E element, front cam cover, fitting screws for attaching the main unit to the back box, and a tool for turning them. Once activated, the unit can be reset with the provided key—no need to replace broken elements.
This variant is resistant to water ingress thanks to o-ring sealed cable entries, waterproof microswitches, and the use of epoxy resin where appropriate in construction.
Main Features
DPDT Operation
Resettable
With Buzzer/LED
Made in UK
Resettable plate insert
Surface mount
LED

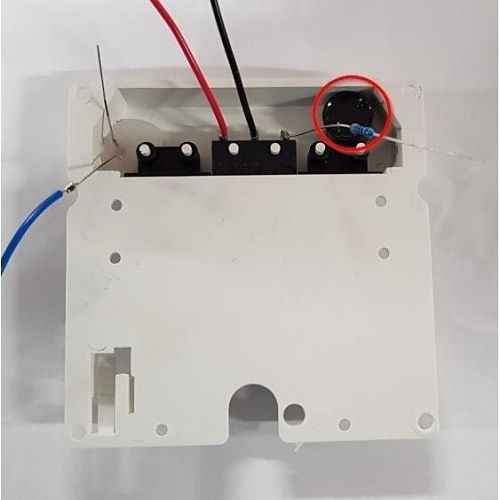

Internal Buzzer (Buzzer wired in parallel with the LED) See image below for buzzer position
See image below for buzzer position
87 x 87 x 53mm
Specifications
Application/Usage
Egress/Door Release
Connectivity Technology
Wired
Contact Type
DPDT (Double Pole Double Throw); Form C (SPDT)
Energy Star
No
Features
Double Pole Contact; LED; Resettable Insert Plate; Surface Mount; Water Proof
