Knight Fire N/O4S/3M G2 Heavy-Duty Surface Contact, 3m 4-Core, Blue
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 4 | 2 to 3 working days |
- 4-Core (2x Switch, 2x Tamper)
- Resin Sealed
- Improved Electrical Rating
- Distinctive Blue Colour
- Made in UK
- Environmental Class III
Frequently bought together
Product details

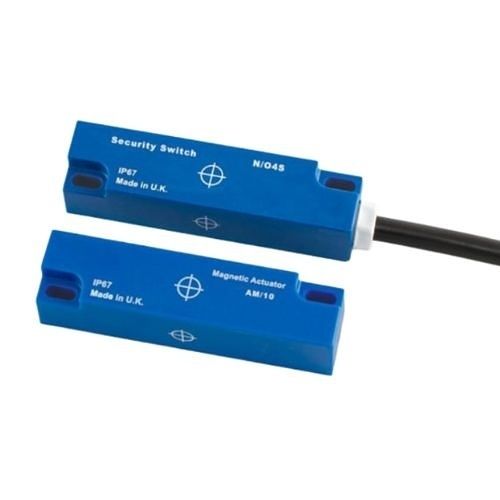

A general-purpose, very heavy-duty surface-mount magnetic contact. This variant is supplied with 3m of thick, 4-core defence standard cable (16-2-4A). Its ruggedness is further enhanced by polyurethane resin sealant and IP-rated cable glands.
N/O4S is ideal for locations where other surface-mount contacts have failed, up to Security Grade 2. The 4-wire (2x switch, 2x tamper) design allows it to be used as a straight (dry/resistorless) contact, while also permitting the addition of installer resistors if wired back to a suitable junction box.
This unit has an enhanced electrical rating, allowing up to 1A switching/1.5A carry current at 0-100VDC. Operating gap depends on the magnet used – expect approximately 60mm when paired with an AM/9 and approximately 75mm with an AM/10 (sold separately).
- 4-Core (2x Switch, 2x Tamper)
- Resin Sealed
- Improved Electrical Rating
- Distinctive Blue Colour
- Made in UK
- Environmental Class III
- Temperature range -10 to 70 °C
- 3m Cable, DEF 16-2-4A - 4 core
- Max operating distance 50mm (mounted on non-ferrous surfaces)
- EN 50131-2-6:2008 Grade 1 Environmental Class Ill. RoHS Compliant. IP67
Specifications
| Application/Usage | Industrial Doors |
|---|---|
| Connectivity Technology | Wired |
| Contact Type | Form A (SPST-NO) |
| Depth | 20.50mm |
| Energy Star | No |
| Indoor/Outdoor | Indoor; Outdoor |
| Input Voltage | 50V DC |
| Length | 84.50mm |
| Limited Warranty | 1-Year |
| Material | Plastic |
| Mount Type | Surface Mount |
| Package Contents |
|
| Product Line | Surface Contact |
| Product Series | N/O |
| Product Type | Surface Contact |
| Security Grade | Grade 2 |
| Standard Gap | 60.00mm |
| TAA Compliant | No |
| Width | 20.50mm |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | Blue |
| Country of Origin | UK |
| INCERT Certified | No |
| Input Current | 1A |
| LPCB Certified | No |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Out of Scope |
Downloads
Product datasheet
Knight Fire N/O4S/3M G2 Heavy-Duty Surface Contact, 3m 4-Core, Blue Product datasheet · NO4S3M · PDF Open datasheet
