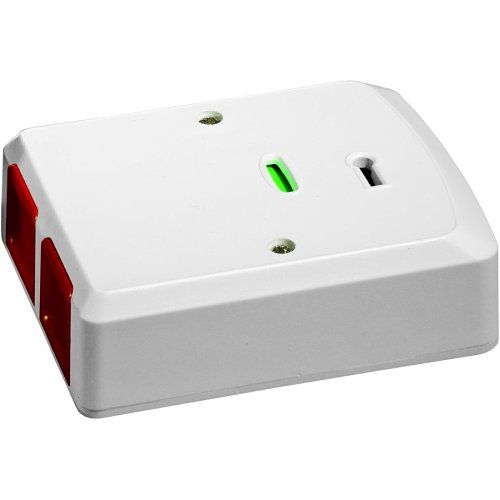

A double end-push panic button suitable for Grade 3 installation. This unit operates on a 4-wire (dry/voltage-free) system, but installer resistors can be added inside the unit if a 2-wire supervised circuit is required.
Accidental activation is prevented by requiring both buttons to be pushed simultaneously to trigger an alarm signal. When activated, an internal slide actuates the microswitch and changes the flag indicator visible on the front of the unit. The alarm signal will latch until the button is reset using the supplied key (part KEY10).
The internal PCB of this panic button features 4 wire-clamping terminal blocks for zone/tamper wiring, a breakaway back tamper, a sprung microswitch lid tamper, and a 3-pin header that can be shunted to operate the button in NO or NC configuration.
