Shop all Knight Fire & Security
Knight Fire YA90 G3 Flush Contact, 1m 8-Core, Multi-Resistor, Metal Plate, White
SKU: YA-90Brand: Knight Fire & Security
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Knight Fire YA90 G3 Flush Contact, 1m 8-Core, Multi-Resistor, Metal Plate, White
£17.40
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
- 4k7/6k8
Frequently bought together
Knight Fire & Security
Knight Fire YEND24 G2 Surface Contact, 4-Terminal, Multi-Resistor, White
Sale price£5.30
In stock
Knight Fire & Security
Knight Fire YEND24BK G2 Surface Contact, 4-Terminal, Multi-Resistor, Black
Sale price£20.35
In stock
Knight Fire & Security
Knight Fire YEND24GY-7016 G2 Surface Contact, 4-Terminal, Multi-Resistor, Grey
Sale price£6.20
In stock
Knight Fire & Security
Knight Fire YEND74 G3 Large Surface Contact, 4-Terminal, Multi-Resistor, White
Sale price£7.10
In stock
Knight Fire & Security
Knight Fire YEND74B G3 Large Surface Contact, 4-Terminal, Multi-Resistor, Brown
Sale price£8.00
In stockProduct details

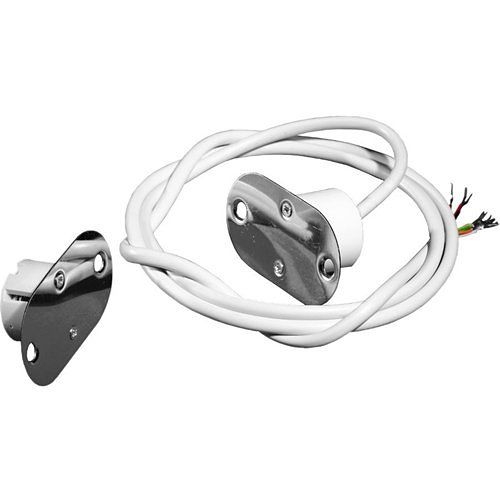

A resin-sealed variant of the A90 contact, supplied with 1m of 8-core alarm cable. This unit has integral resistors suitable for wiring to various I&HAS panels:
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
- 4k7/6k8
Note: This contact cannot be wired '4-wire'/without resistors.
The YA90 series is designed to fit 25mm diameter recesses, fully covered by the stainless-steel metal plate when installed.
Biased reeds in the construction enable the unit to detect and respond to magnetic interference, meeting Grade 3 requirements.
Supplied complete with fitting screws.
Main Features
- 8-Core
- Multi-Resistor
- Resin Sealed
- Metal Plate
- Shared Zone Wiring
- Made in UK
- Environmental Class III
- Magnetically Shielded thus meeting EN50131 Grade requirements
- It meets all of the necessary requirements for magnetic contacts permitting it to be used within Grade 3 installations
- The contact has installer selectable End of Line (EOL) and alarm contact bypass resistors
Specifications
| Application/Usage | Door; Window |
|---|---|
| Connectivity Technology | Wired |
| Contact Type | Form A (SPST-NO) |
| Diameter | 25.00mm |
| Energy Star | No |
| Environmental Certification | Environmental Class III (Outdoor Sheltered) |
| Indoor/Outdoor | Indoor |
| Input Voltage | 100V DC; 120V AC; 12V DC |
| Limited Warranty | 1-Year |
| Material | Plastic; Stainless Steel |
| Mount Type | Flush Mount |
| Package Contents |
|
| Product Line | Flush Contact |
| Product Series | YA |
| Product Type | Flush Contact |
| Security Grade | Grade 3 |
| Standard Gap | 20.00mm |
| TAA Compliant | No |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | White |
| Contact Material | Rhodium |
| INCERT Certified | No |
| Input Current | 500mA |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security Products Ltd |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Knight Fire YA90 G3 Flush Contact, 1m 8-Core, Multi-Resistor, Metal Plate, White Product datasheet · YA-90 · PDF Open datasheet
