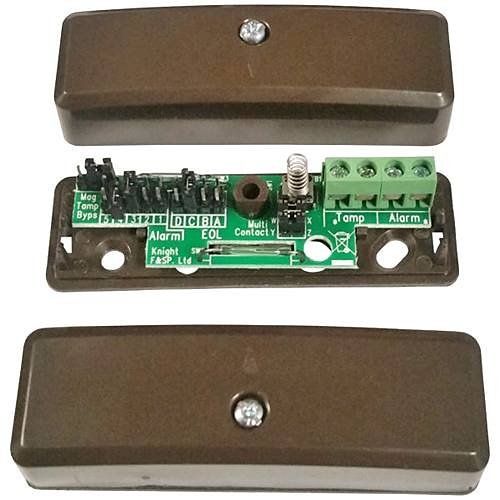

Knight Fire YEND74B G3 Large Surface Contact, 4-Terminal, Multi-Resistor, Brown
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 49 | 2 to 3 working days |
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 2k2/6k8
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
Frequently bought together
Product details
A universal, large surface contact ideal for G3 installations. All electronics are PCB mounted, with wire-clamping terminal blocks for easy wiring. This contact can be wired in series, allowing 2+ contacts to share a zone and function as a single unit. YEND74 features integral EOL resistors suitable for mainstream panels in the following configurations, selected by shunt links on the PCB:
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 2k2/6k8
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
- 4k7/6k8
- 5k6/5k6
A no-resistor/dry configuration is also selectable for 4-wire installations where resistors are not required.
The tamper is a sprung microswitch, detecting removal of the contact lid. A second tamper reed detects and responds to magnetic interference, meeting the requirements for Grade 3. This reed may optionally be bypassed by shunt, reducing the product to Grade 2 level.
Comes complete with 2x spacers and fitting screws.
- 4-Terminal
- Multi-Resistor
- Magnetic Interference Detection
- Microswitch Tamper
- G2/G3 Selectable
- Shared Zone Wiring
- Made in UK
- Environmental Class II
- Operation Gap: 30mm
- Approx Dimensions: 78mm x 25mm x 20mm
Specifications
| Application/Usage | Door; Window |
|---|---|
| Compatibility | Aritech; Castle); Cooper (Scantronic; DSC; Europlex; Guardall; HKC; Honeywell (Ademco/Microtech); Inner Range; Menvier; Pyronix; RISCO (Gardtec); siemens; Texecom |
| Connectivity Technology | Wired |
| Contact Type | Form A (SPST-NO) |
| Energy Star | No |
| Environmental Certification | Environmental Class II (Indoor Uncontrolled) |
| Features | Built-in Resistor; Magnetic Interference Detection |
| Height | 24.0mm |
| Indoor/Outdoor | Indoor |
| Input Voltage | 1-100V DC; 125V AC |
| Length | 78.0mm |
| Limited Warranty | 1-Year |
| Material | Plastic |
| Mount Type | Surface Mount |
| Package Contents |
|
| Product Line | Surface Contact |
| Product Series | YEND |
| Product Type | Surface Contact |
| Security Grade | Grade 3 |
| Standard Gap | 25.0mm |
| TAA Compliant | No |
| Thickness | 20mm |
| Width | 20.0mm |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | Brown |
| Contact Material | Rhodium |
| Country of Origin | UK |
| INCERT Certified | No |
| Input Current | 500mA |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security Products Ltd |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Knight Fire YEND74B G3 Large Surface Contact, 4-Terminal, Multi-Resistor, Brown Product datasheet · YEND74 BROWN · PDF Open datasheet
