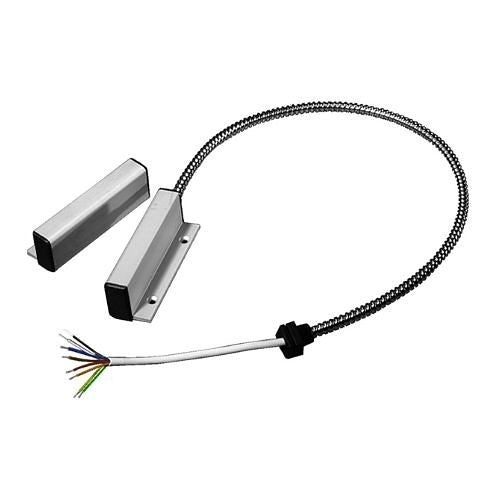

Knight Fire YH10AR1M G3 Alu Angle Contact, 1m Armoured 8-Core, R/Handed, Multi-Resistor
| Stock available | Qty | Delivery |
|---|---|---|
| Poole | 0 | None in Poole |
| UK Hub | 11 | 2 to 3 working days |
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
- 4k7/6k8
Frequently bought together
Product details
A universal heavy-duty angle contact ideal for G3 installations, supplied with 1m of armoured 8-core cable. All electronics are PCB mounted and enclosed in a cast aluminium housing. This contact can be wired in series, allowing two or more contacts to share a zone. YH10AR1M features integral EOL resistors suitable for mainstream panels in the following selectable configurations by wire:
- 1k/1k
- 2k2/2k2
- 2k2/4k7
- 4k1/4k1 (Guardall 8k2)
- 4k7/4k7
- 4k7/6k8
Note: This contact cannot be wired '4-wire'/without resistors. See part H10AR1M for a resistorless version.
YH10AR1M is constructed right-handed – the cable exit is on the opposite side to that of a regular YH10A1M. This is useful where there is an aesthetic or logistical need for symmetry in installation, when installed alongside the default left-handed YH10A1M.
The use of biased reeds in construction allows the unit to detect and react to magnetic interference, meeting the requirements of Grade 3.
Comes complete with fitting screws.
- Armoured 8-Core
- Multi-Resistor
- Aluminium Housings
- Right Handed
- Angle Fitting
- Shared Zone Wiring
- Made in UK
- Environmental Class III
- Includes resistors compatible with Honeywell, Orisec, Ademco, Scantronic, Menvier, Texecom, Pyronix, Castle, Aritech, HKC, Gardtec / RISCO, Guardall and Inner Range Control Panels
- Simply select the wires as per the instructions to determine the resistance to suit your panel
Specifications
| Application/Usage | Industrial Doors |
|---|---|
| Connectivity Technology | Wired |
| Contact Type | Form A (SPST-NO) |
| Energy Star | No |
| Environmental Certification | Environmental Class III (Outdoor Sheltered) |
| Indoor/Outdoor | Indoor |
| Limited Warranty | 2-Year |
| Material | Aluminium; Stainless Steel |
| Mount Type | Surface Mount |
| Product Line | Angle Contact |
| Product Series | YH |
| Product Type | Angle Contact |
| Security Grade | Grade 3 |
| Standard Gap | 30.00mm |
| TAA Compliant | No |
| ATEX Compliant | No |
| CE Marking | Yes |
| CNBOP Certified | No |
| Colour | Black |
| INCERT Certified | No |
| LPCB Certified | No |
| Manufacturer | Knight Fire & Security |
| NF Certified | No |
| NF&A2P Certified | No |
| RoHS Compliant | Compliant |
| SBSC Certified | No |
| TIA Listed | No |
| UL Listed | No |
| VdS Certified | No |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Knight Fire YH10AR1M G3 Alu Angle Contact, 1m Armoured 8-Core, R/Handed, Multi-Resistor Product datasheet · YH10AR1M · PDF Open datasheet
