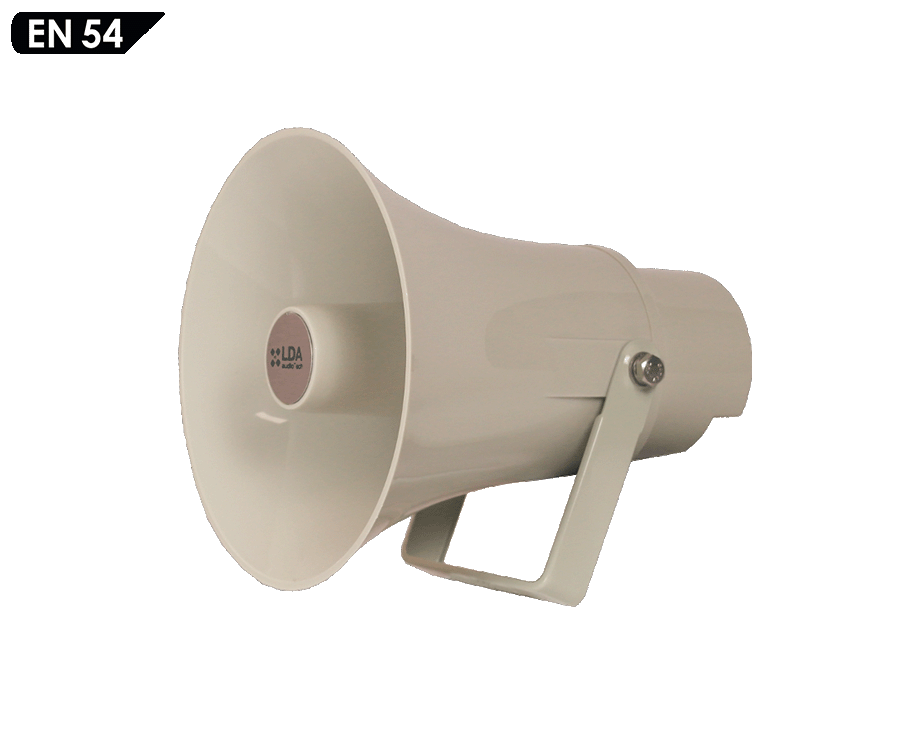

LDA Audio Tech PS-15TN (590.004.009) Horn Speaker

The LDA Audio Tech PS-15TN is a 15 W voice alarm horn loudspeaker certified to EN 54-24, for 100 V / 70 V line public address and voice alarm (PA/VA) systems. Its high sound pressure level delivers intelligible voice messages, making it well suited to outdoor areas and spaces with adverse climatic conditions such as train stations, harbours, factories, campuses and stadiums. The housing is made from high-resistance ABS with UL94-5VB fire protection, and the speaker is fitted with a ceramic terminal block and thermal fuse.

Key features

• EN 54-24 certified for voice alarm systems
• Compression driver horn for intelligible voice and high sensitivity
• High-resistance ABS housing with UL94-5VB fire protection
• IP66 rated (type B to EN 54-24) for outdoor use
• Ceramic terminal and thermal fuse
• Adjustable U-type bracket supplied for mounting on any surface
• Light grey finish (RAL 7035)

Technical specifications

• Model / reference: PS-15TN / LDAPS15TNS01
• Driver: compression motor
• Nominal power: 15 W rms; maximum power: 25 W
• Taps at 100 V: 15 W / 7.5 W / 3.75 W
• Taps at 70 V: 7.5 W / 3.75 W / 1.8 W
• SPL: 112 dB (Pmax / 1 m), 99 dB (1 W / 1 m), 87 dB (1 W / 4 m), all ±1 dB
• Frequency response (-10 dB): 400 Hz – 8 kHz
• Dispersion (-6 dB): 360° at 500 Hz, 120° at 1 kHz, 65° H x 70° V at 2 kHz, 35° H x 40° V at 4 kHz
• Nominal impedance: 666 Ω / 1.3 kΩ / 2.6 kΩ
• Connection: ceramic terminal, max 2.5 mm² cable
• Thermal fuse: 115°C
• Dimensions: Ø200 mm x 230 mm
• Colour: grey (RAL 7035)
• IP rating: IP66 (type B according to EN 54-24)
• Net weight: 1.4 kg
