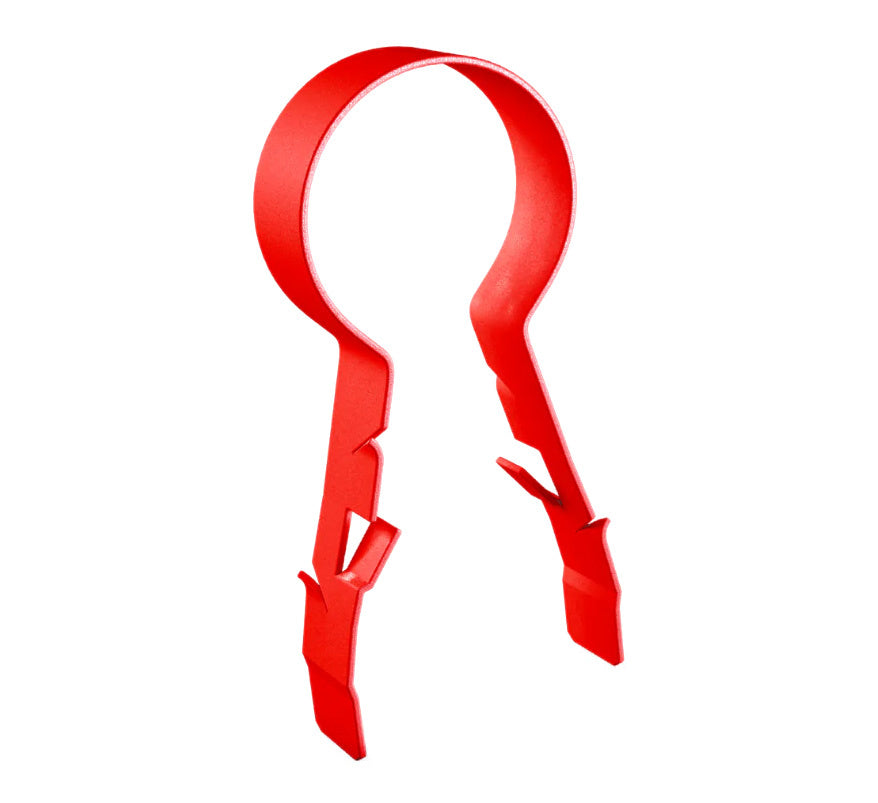

The LINIAN SuperClip™ 20-22mm in red (1LSR2022) is a heavy-duty, single-component, fire-rated push-in fixing for cables and conduit with an overall diameter of 20-22mm. It is suitable for SWA cables, PVC and metal conduit and bunched cables, can be used with steel cable ties and outdoor trunking, and suits neat EV, solar and conduit installations indoors or outdoors.
It meets the 18th Edition requirement for cables to be supported against premature collapse in the event of fire. Drill a hole, slide the clip over the cable or conduit and push it in: no conduit saddles, plugs, screws, washers or cleats are needed. Supplied in a pack of 25.
Key features
- 18th Edition (BS 7671) compliant, fire-rated cable fixing
- Fire resistant to more than 1200 °C
- BS EN 50200: 120 minutes fire time; DIN 4102-12: 90 minutes fire time
- Corrosion resistant and UV stable
- Single-component design: no plugs, screws or washers needed
- CE and CA certified; made in Britain
- Suitable for SWA cable, PVC/metal conduit, bunched cables and anchor fixings for wire
- Can be used with steel cable ties and outdoor trunking
- Suitable for indoor and outdoor use
Technical specifications
- Part number: 1LSR2022
- Cable/conduit overall diameter: 20-22mm
- Equivalent cleat size: CC9
- Colour: red
- Recommended spacing: 300 mm
- Hole diameter: 10 mm (±0.5 mm, varies for best fixing according to the substrate)
- Hole depth: 40 mm
- Maximum tensile load: 44 kg
- Standards referenced by LINIAN: BS 7671 18th Edition (and Amendment 3), BS EN 50200 PH120, BS 8519:2010, DIN 4102-12 E90
- Pack quantity: 25
