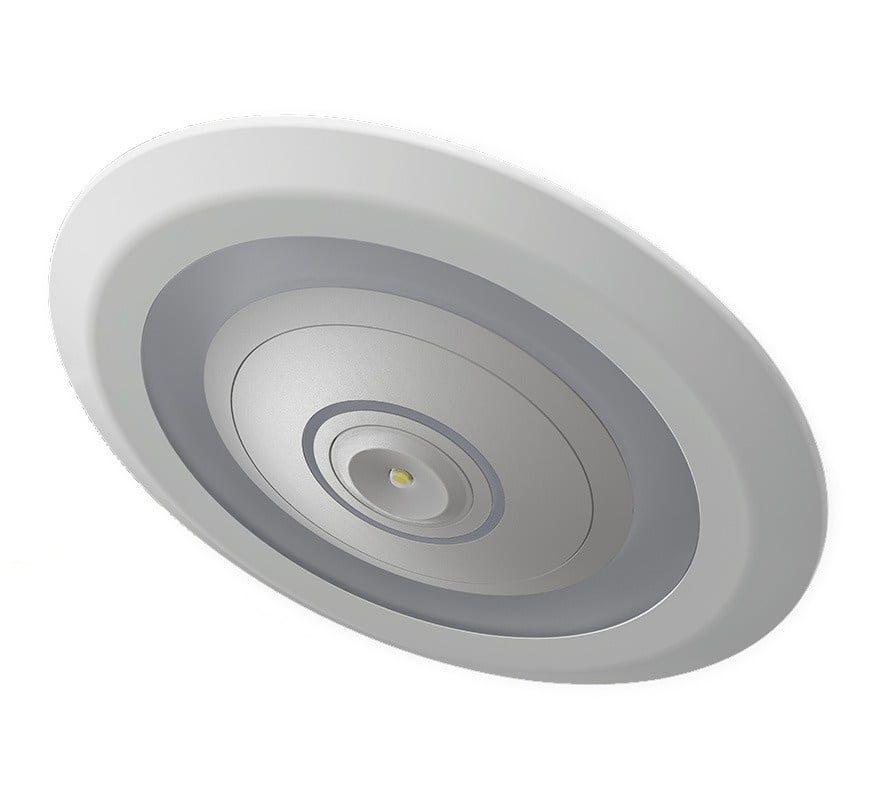

The Lumi-Emergency Flood (LP110WH4KFLEM) combines Lumi-Plugin's fire-rated LED downlight in cool white (4000K) with a non-maintained emergency light plugin fitted at its centre. In normal use it works as a 600 lumen dimmable downlight. If the mains supply fails, the emergency light switches on and runs from its built-in battery.
Lumi-Emergency Flood lights the area around fire extinguishers, fire doors and stairways so exit routes are well lit. It is mains powered with a pre-wired junction box and battery back-up, and is fire rated for 30, 60 and 90 minute ceilings. Installation should be carried out by a competent electrician.
Key features
- Downlight with integrated non-maintained emergency light
- Best positioned above fire extinguishers, near fire doors and on stairways
- 3 hour battery back-up (LiFePO4)
- Pre-wired junction box
- Cool white 4000K, 600 lumen trailing-edge dimmable downlight
- Fire rated for 30, 60 and 90 minute ceilings
Technical specifications
- Product code: LP110WH4KFLEM
- Emergency mode: non-maintained, 3 hour battery back-up
- Emergency battery: 3.2V 3.8Ah LiFePO4
- Emergency output: 201 lumens at 550mA; power rating 3W
- Emergency beam angle: 115°
- Emergency light source: Samsung LH315B, 6500K
- Emergency wiring: series connection via C4201 plug
- Emergency unit voltage: 240V
- Downlight colour temperature: 4000K
- Downlight output: 600 lumens, 8.2W
- Downlight voltage: 220–240V AC, 50Hz
- Beam angle (downlight): 100°
- CRI: >80
- Dimmable: trailing edge; built-in driver
- Fire rated: 30/60/90 minutes (solid joist); 30 minutes (metal web joist and I-joist)
- Colour: white
- Downlight guarantee / rated life: 5 years / 50,000 hours
- Cut-out size: 92mm; diameter 110mm; height 67.5mm; depth 55mm
