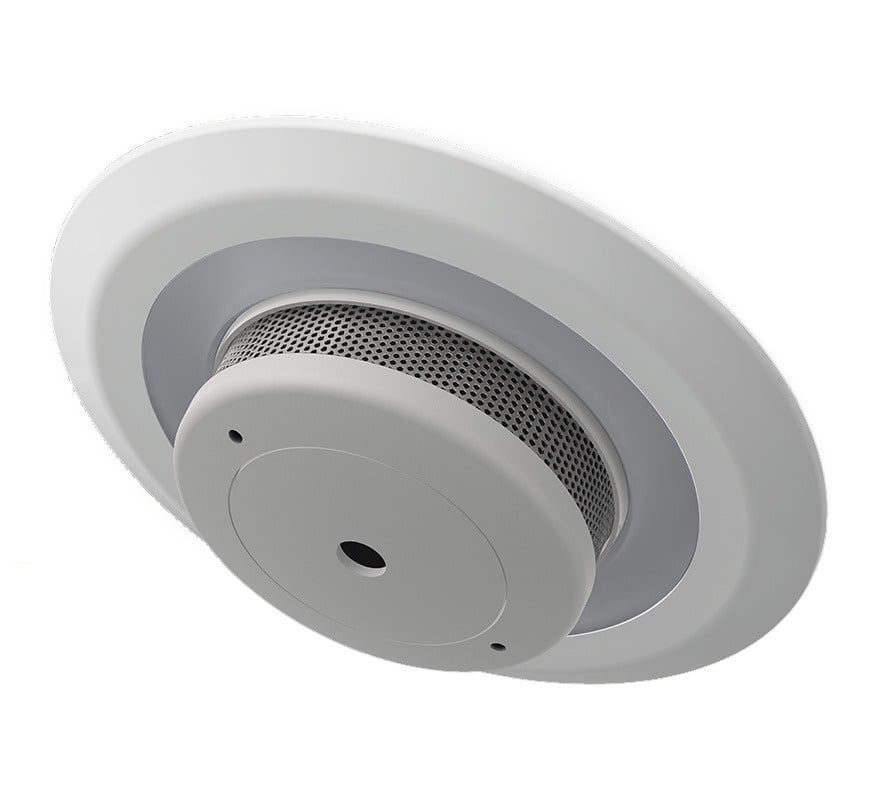

The Lumi-Plugin LP110WH4KMBWSA is a fire-rated LED downlight in cool white (4000K) with a Lumi-Smoke plugin. This mains-powered smoke alarm sits in the centre of the downlight, has battery back-up and links wirelessly to other Lumi-Plugin smoke and heat alarms for whole-home coverage.
Key features
- Mains-powered smoke alarm built into a 600-lumen LED downlight
- Non-replaceable 10-year CR2 back-up battery
- 868MHz wireless interlink with Lumi-Plugin smoke and heat alarms
- Smoke alarm to EN 14604:2005 + AC:2008 and complies with BS 5839-6 Grade D1
- Fire-rated 30/60/90 minutes
- CE and UKCA marked
Technical specifications
- Colour temperature: 4000K
- Downlight output: 600 lumens
- Wattage: 8.2W
- Voltage: 220 to 240V AC, 50Hz
- Dimmable: trailing edge
- Built-in driver: yes
- Cut-out size: 95mm
- Product depth / diameter: 55mm / 110mm
- Beam angle: 100°
- CRI: greater than 80
- Rated life: 50,000 hours
- Fire rating: 30/60/90 minutes (solid joist); 30 minutes (metal web joist and I-joist)
- Smoke alarm voltage: 110V AC / 230V AC
- Smoke alarm battery: non-replaceable CR2, 10-year
- Interlink frequency: 868MHz
- Smoke alarm operating temperature: -10°C to +70°C
- Sounder: minimum 85dB at 3m
