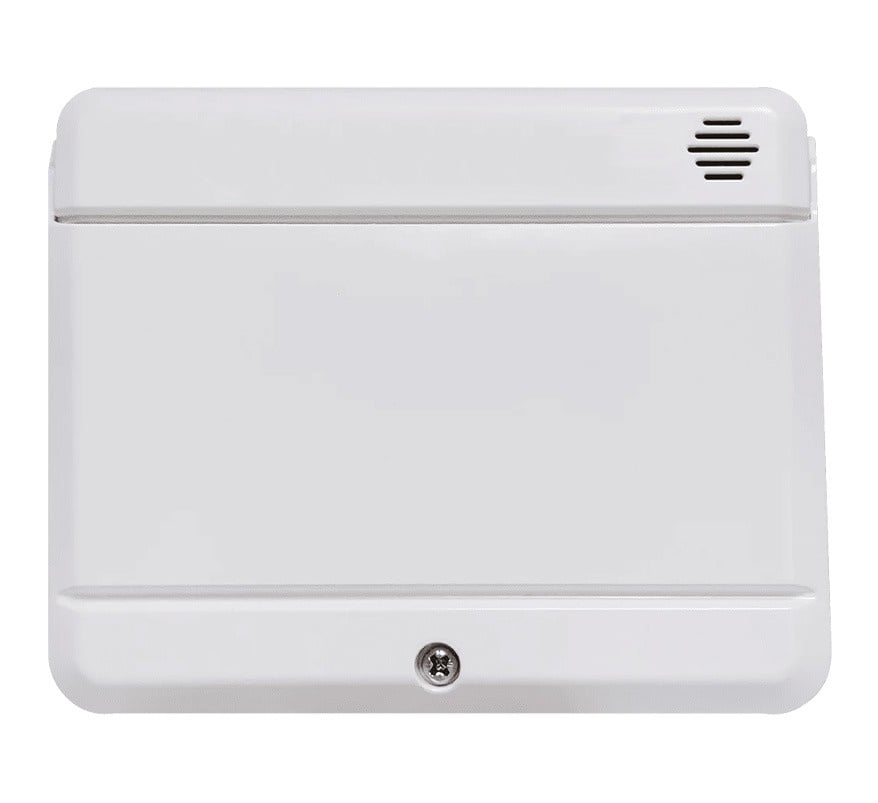

Lumi-Plugin Mains Powered Radio-Interlink Relay with 10 Year Backup Battery (LPRLY9004)

The Lumi-Relay (LPRLY9004) is a mains-powered wireless relay that connects Lumi-Plugin Lumi-Smoke, Lumi-Heat, One-Smoke and One-Heat alarms to external systems, such as telecare and warden call systems, sprinkler systems, fire panels, strobes and external sounders. It links to the alarms wirelessly on 868MHz and has a 10-year replaceable battery back-up.

Key features

• Connects Lumi-Plugin smoke and heat alarms to external systems
• Wireless interlink at 868MHz; up to 32 units
• Latched or pulsed relay output (user selectable)
• Volt-free and voltage trigger inputs
• 10-year replaceable battery
• UKCA and CE marked

Technical specifications

• Product code: LPRLY9004
• Voltage: 230V AC, 3.7W
• Battery: replaceable CR2
• Relay output: latched or pulsed (user selectable)
• Trigger inputs: volt-free (3V DC output with return); voltage in 3V to 30V
• Interconnection: up to 32 units
• Interlink frequency: 868MHz
• Operating temperature: 0°C to 40°C
• Operating humidity: 0% to 90% RH, non-condensing
• Dimensions: 115mm (H) x 145mm (W) x 27mm (D)
• Weight: 250g
• Colour: white
• Guarantee: 5 years
