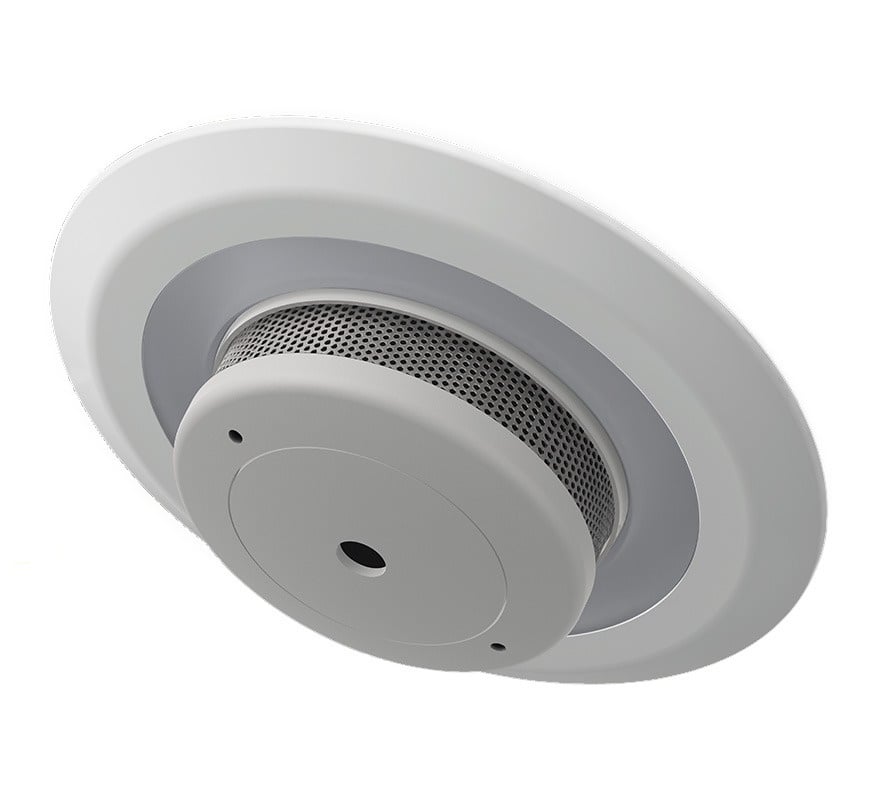

The Lumi-Smoke (LP110WH3KMBWSA) combines Lumi-Plugin's fire-rated LED downlight in warm white (3000K) with what Lumi-Plugin describes as the world's smallest mains-powered smoke alarm, clicked into the centre of the light. It gives discreet smoke detection and lighting from a single ceiling fitting, and connects wirelessly (868MHz) to Lumi-Plugin heat alarms to protect the whole home. It has a 10-year sealed battery back-up and complies with BS 5839-6 Grade D1. Installation should be carried out by a competent electrician.
Key features
- Mains-powered smoke alarm integrated into a fire-rated LED downlight
- Wireless interlink with Lumi-Plugin heat alarms
- Non-replaceable 10-year CR2 battery back-up
- BS 5839-6 Grade D1
- Warm white 3000K, 600 lumen dimmable downlight
- Fire rated for 30, 60 and 90 minute ceilings
Technical specifications
- Product code: LP110WH3KMBWSA
- Voltage: 110V AC / 230V AC
- Battery: non-replaceable CR2, 10-year
- Interlink frequency: 868MHz
- Sound: minimum 85dB at 3m
- Operating temperature: -10°C to +70°C
- Class: 2
- Complies with: BS 5839-6 Grade D1
- Downlight output: 600 lumens, 8.2W
- Colour temperature: 3000K (warm white)
- Beam angle: 100°
- CRI: >80
- Dimmable: trailing edge; built-in driver
- Downlight rated life: 50,000 hours
- Fire rated: 30/60/90 minutes (solid joist); 30 minutes (metal web joist and I-joist)
- Cut-out size: 92mm; diameter 110mm
- Height: 117.1mm; depth 92mm
- Colour: white
- Guarantee: 5 years (smoke alarm)
