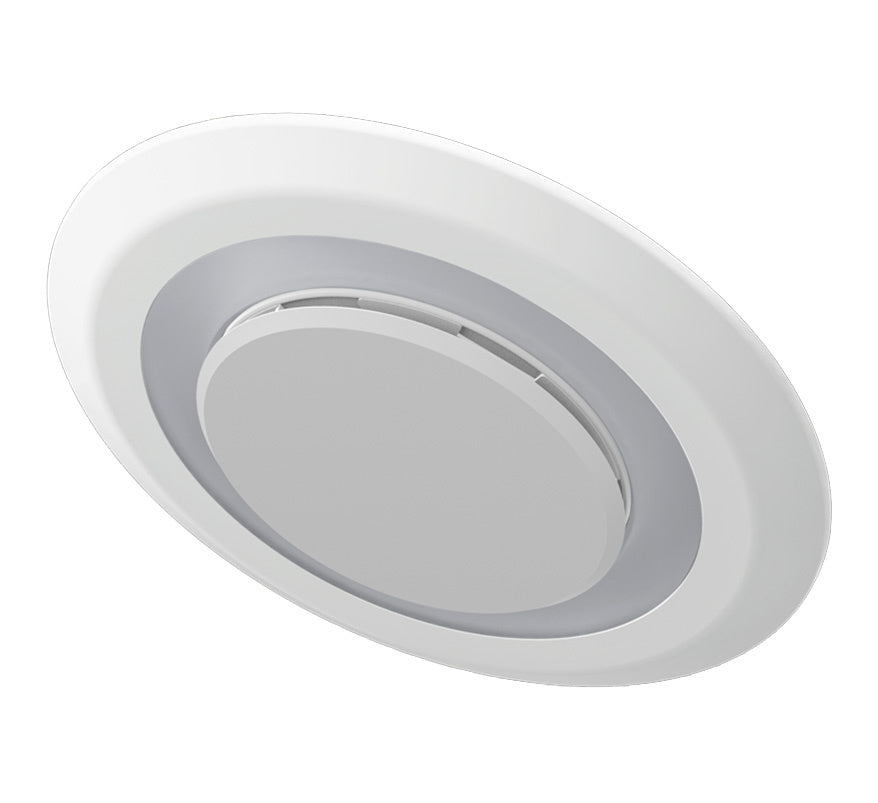

The Lumi-Plugin LP110WH3KSPK combines a fire-rated LED downlight in warm white (3000K) with the Lumi-Sprinkler plugin. A concealed sprinkler head sits in the centre of the downlight, so lighting and sprinkler protection share one ceiling fitting. This keeps ceilings clear in homes and residential developments.
Key features
- Concealed sprinkler plugin in the centre of a 600-lumen LED downlight
- IP54 rated sprinkler assembly
- Fire-rated 30/60/90 minutes
- Warm white 3000K removable LED bulb
- Sprinkler plugin for commercial installations to LPS 1048 and residential installations to BS 9251:2014
- CE and UKCA marked
Technical specifications
- Colour temperature: 3000K
- Downlight output: 600 lumens
- Wattage: 8.2W
- Voltage: 220 to 240V AC, 50Hz
- Dimmable: trailing edge
- Built-in driver: yes
- Cut-out size: 95mm
- Product depth / diameter: 55mm / 110mm
- Beam angle: 100°
- CRI: greater than 80
- Rated life: 50,000 hours
- Fire rating: 30/60/90 minutes (solid joist); 30 minutes (metal web joist and I-joist)
- Sprinkler K factor: 5.6 (RD107) or 4.9 (RD205)
- Cover plate size: 60mm
- Link: fusible link
- Maximum working pressure: 12.1 bar (175psi)
- Temperature rating: sprinkler 72°C; cover plate 60°C
- Vertical adjustment: 9.0mm
