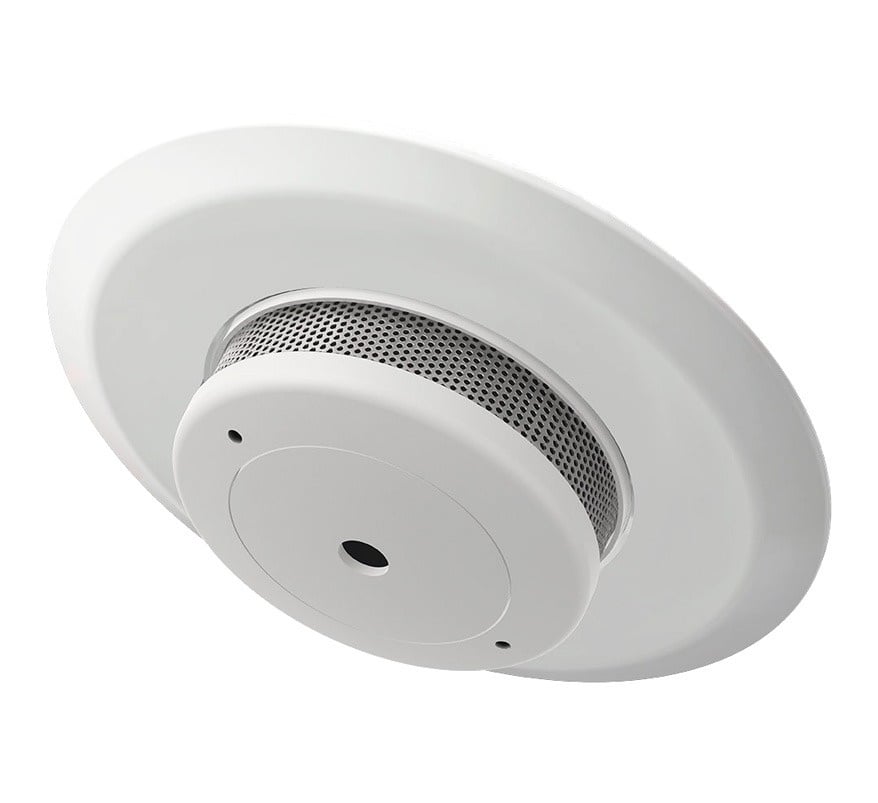

The Lumi-Plugin One-Smoke (LS110WHMBWSA) is a mains-powered, recessed smoke alarm with a sealed 10 year back-up battery and built-in radio interlink. Part of the Lumi-Plugin One-Range, it is designed to be installed on its own, without a Lumi-Plugin downlight, so that smoke alarms can be positioned exactly where they are needed for discreet, complete coverage in homes, apartments and residential developments.
Key features
- Mains powered with a non-replaceable 10 year CR2 back-up battery
- 868MHz radio interlink: wirelessly connects with other Lumi-Plugin smoke and heat alarms
- Recessed, low-profile design: described by Lumi-Plugin as the world's smallest mains-powered alarm of its type
- Fire-rated ceiling installation: 30/60/90 minutes in solid joist ceilings, 30 minutes in metal web and I-joist ceilings
- Supplied with a pre-wired junction box for quicker installation
- Installs as a standalone fixture without a Lumi-Plugin downlight
- Complies with BS 5839-6 Grade D1
Technical specifications
-
Model: LS110WHMBWSA
-
Supply voltage: 110V AC / 230V AC
-
Back-up battery: Non-replaceable CR2, 10 year
-
Interlink frequency: 868MHz
-
Sounder output: Minimum 85dB at 3m
-
Operating temperature: -10°C to +70°C
-
Standards: EN 14604:2005 + AC:2008; BS 5839-6 Grade D1; fire rated to EN 1365; CE and UKCA marked
