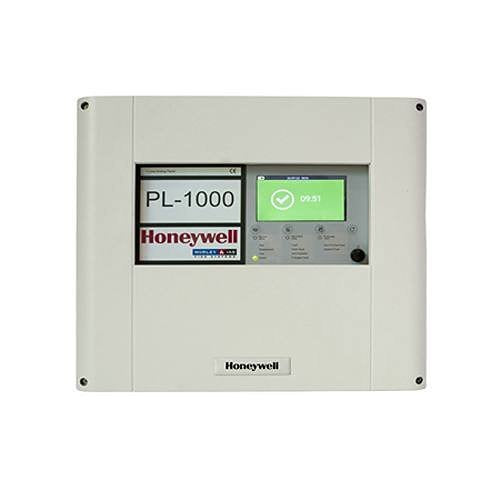

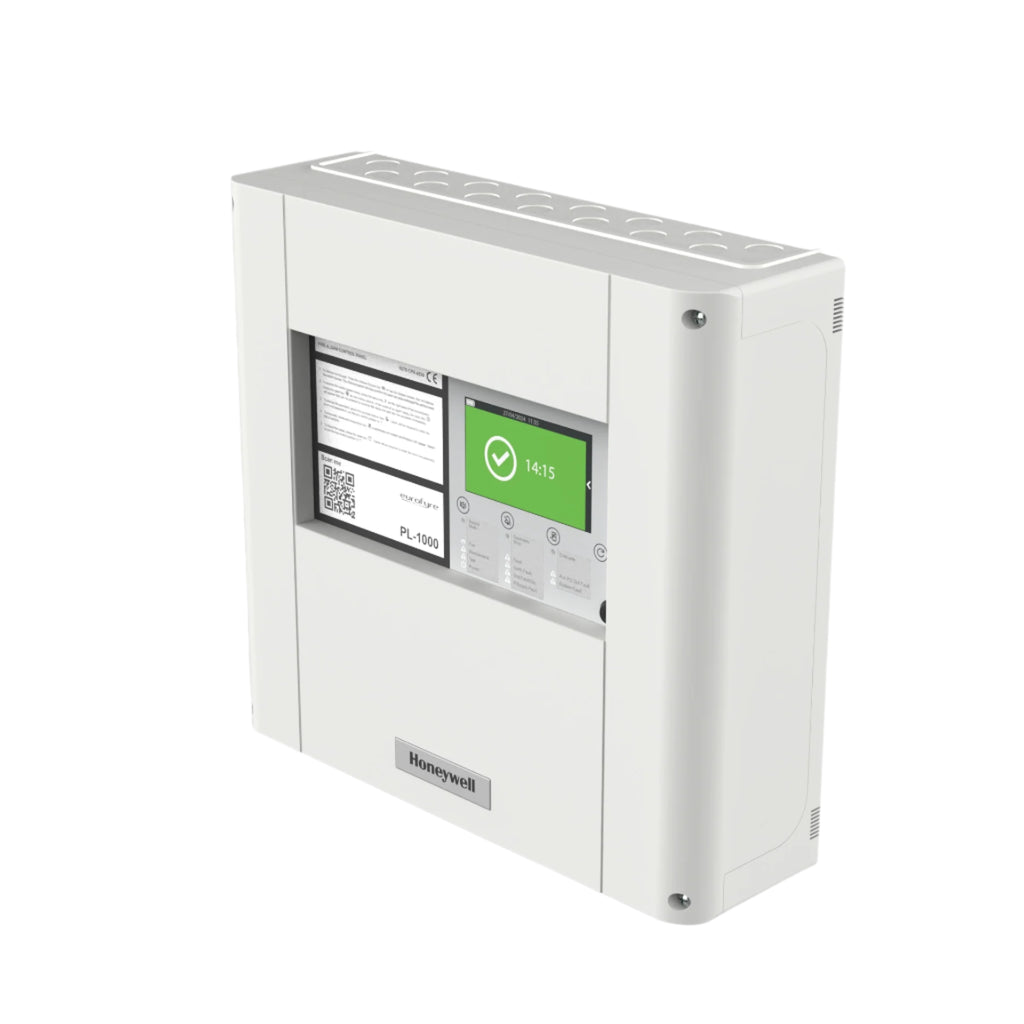

Morley-IAS PL-1000 Plus Addressable Fire Alarm Panel

The Morley-IAS Plus PL-1000 is a compact, single-loop analogue addressable fire alarm control panel that is quick to install and configure. It uses Honeywell's Advanced (AP) protocol, which speeds up alarm detection and gives the installer as much information as possible.

The panel can be expanded to two loops with the optional PL-LIB01 loop card, and each loop supports 159 detectors and 159 input/output modules. A 4.3 inch colour touch screen lets you configure the whole system from the panel itself.

Key features

• 4.3 inch (480 x 272 pixel) backlit colour touch screen and backlit membrane buttons
• Single loop, expandable to two loops with the optional PL-LIB01 loop module
• 159 detectors and 159 input/output modules per loop
• Honeywell Advanced (AP) protocol
• Multiple language options
• Colour event indication tab system
• Simple dot matrix cause and effect rule builder
• 16 virtual zonal LED indicators on screen
• Certified to EN 54-2 and EN 54-4

Technical specifications

• Mains supply: 100-240 V AC +/-15%, 50/60 Hz
• Power consumption: 65 W max.
• Battery capacity: 7 Ah or 12 Ah (batteries not included)
• 24 V DC output: 500 mA max.
• Relay outputs: 1 fault (NO/NC), 1 alarm (NO/NC)
• Protection class: IP30
• Colour: RAL 9002
• Dimensions (H x W x D): 356 x 379 x 120 mm
• Weight: 1.76 kg
• Operating temperature: -5°C to +40°C
• Humidity: 5% to 95% non-condensing
