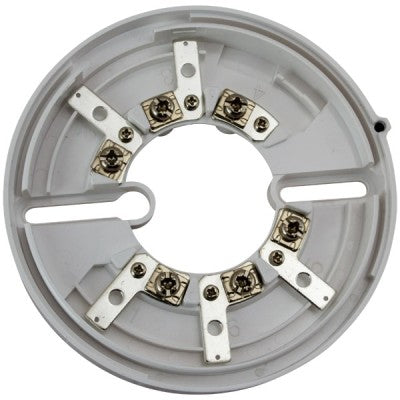

The Nittan UB-6-EV (part no. F03-83521) is the standard mounting base for Nittan Evolution analogue addressable detectors. Nittan describes it as a universal mounting base, standardised across the Nittan Group worldwide.
It is listed as a compatible base for Evolution detectors such as the EV-DP, EV-DPH and EV-H, and it has terminations for both conventional and analogue wiring, including a remote indicator (RIL) output.
Key features
- Standard indoor mounting base for Evolution detectors
- Universal Nittan Group base design
- Conventional and analogue terminations
- Remote indicator (RIL) and earth terminals
Technical specifications
- Operating voltage: 20 to 38 V DC
- Operating temperature: -10°C to +55°C
- Storage temperature: -25°C to +70°C
- Relative humidity: up to 95% RH, non-condensing
- Material: ABS
- Dimensions: Ø104.5 x 15 mm
- Mass: 52 g
- Standards: complies with EN 54-5 and EN 54-7
- Manufacturer part number: F03-83521
