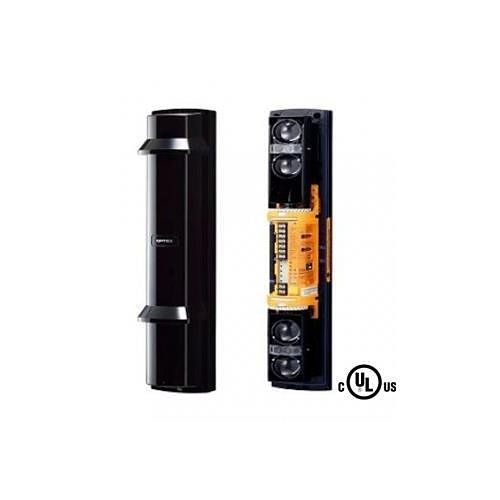

Optex SL-200QDM SL Series, 4-Channel Outdoor Wired Active Infrared Beam Set, 60m, IP65
SKU: SL-200QDM(C)Brand: Optex
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
Optex SL-200QDM SL Series, 4-Channel Outdoor Wired Active Infrared Beam Set, 60m, IP65
£266.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Double modulation
- Beam power control selector
Frequently bought together
Optex
Optex SL-200QDP SL Series, 4-Channel Outdoor Active Infrared Quad Beam Set, Dual Modulation, 60m, IP65
Sale price£223.75
In stock
Optex
Optex SL-350QFR 4-Channel Battery Operated Wireless Quad Beam Set, Stackable, 100m, IP65
Sale price£431.55
In stock
Product details
The SL-200QDM is an outdoor Active Infrared (AIR) barrier with a range of 60 m, operating as a perimeter alarm. The four-beam package offers four selectable channels for easy stacking in beam towers, as well as dual modulation and automatic power adjustment for highly reliable signal transmission between receiver and transmitter, even when exposed to strong sunlight or harsh weather conditions. It can also be connected to an IP network when used in conjunction with the PIE-1 IP/POE module.
Main Features
- Double modulation
- Beam power control selector
Specifications
| Battery Chemistry | Lithium-Ion (Li-ion) |
|---|---|
| Beam Configuration | Quad Beam |
| Connectivity Technology | Wired |
| Depth | 96.5mm |
| Features | Anti-frost System; Automatic Gain Control (AGC); Beam Power Control Selector; Double Modulation; Quad Beam Detection; Water Proof |
| Form Factor | Pole Mount; Wall Mount |
| Height | 447.0mm |
| Input Voltage | 10.5V DC; 30V DC |
| Limited Warranty | 2-Year |
| Material | PC |
| Maximum Outdoor Detection Range | 60m |
| Mount Type | Pole Mount; Wall Mount |
| Number of Channels | 4 |
| Power Source | AC Power |
| Product Line | SmartLine |
| Product Series | SL-QDP |
| Product Type | Photoelectric Beam Detector |
| Width | 78.7mm |
| Additional Information |
|
| Colour | Silver |
| Input Current | 24mA |
| Manufacturer | Optex, Inc |
| Maximum Indoor Detection Range | 121m |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
Optex SL-200QDM SL Series, 4-Channel Outdoor Wired Active Infrared Beam Set, 60m, IP65 Product datasheet · SL-200QDM(C) · PDF Open datasheet
