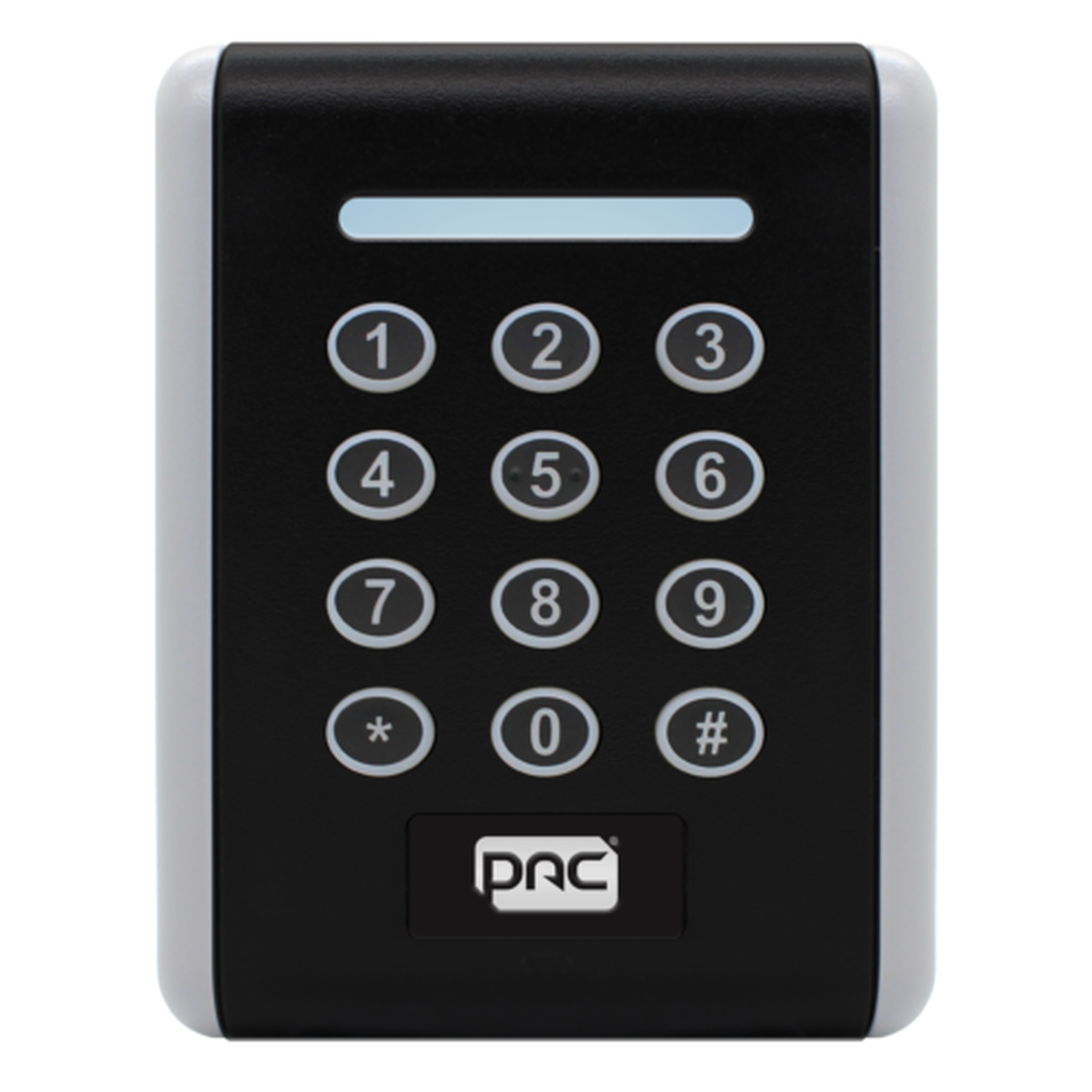

The Comelit PAC 909020122 is a high-frequency (13.56 MHz) PIN and proximity reader from the PAC GS3 range, giving dual authentication (card plus PIN) at the door. It is rated IP65 for indoor or outdoor use, fits most flush-mounted electrical back boxes and reads PAC OPS and OPS Lite credentials, with PAC64, PAC32 or Wiegand output.
Key features
- Keypad for PIN entry alongside proximity reading
- Multiple PIN modes, including PAC PIN Blocking, PAC PIN, PAC64 PIN and various Wiegand PIN options
- IP65, indoor/outdoor; Security Grade 3
- Supports PAC OPS, PAC OPS Lite and many Wiegand variants
- Integral tamper circuit and mounting plate; reader line tamper with PAC 512 controllers
Technical specifications
- Part number: 909020122
- Supported credentials: PAC OPS, PAC OPS Lite
- Supported output protocols: PAC64, PAC32, Wiegand
- RFID frequency: high frequency (13.56 MHz)
- Distance to controller: 70 m (reader powered from controller), 500 m (locally powered reader)
- Recommended cabling: PAC output 6-core 24 AWG 0.22 mm² alarm cable (unscreened)
- Maximum read range: 45 mm
- Indicators: audible sounder and red/green LEDs
- Tamper: certified to EN 50131-1 and EN 50131-3
- Power input: 12-24 V DC, <150 mA at 12 V DC
- Dimensions: 89 x 115 x 30 mm (W x H x D)
- Weight: 0.294 kg
- Material: UL rated polycarbonate
- Environment: IP65, indoor/outdoor
- Intruder grading: Security Grade 3
- Operating temperature: -40 °C to +66 °C
- Operating humidity: 10% to 85% RH
- Warranty: lifetime against electronic failure
- Standards: UKCA, CE, FCC, IC, RoHS and WEEE
