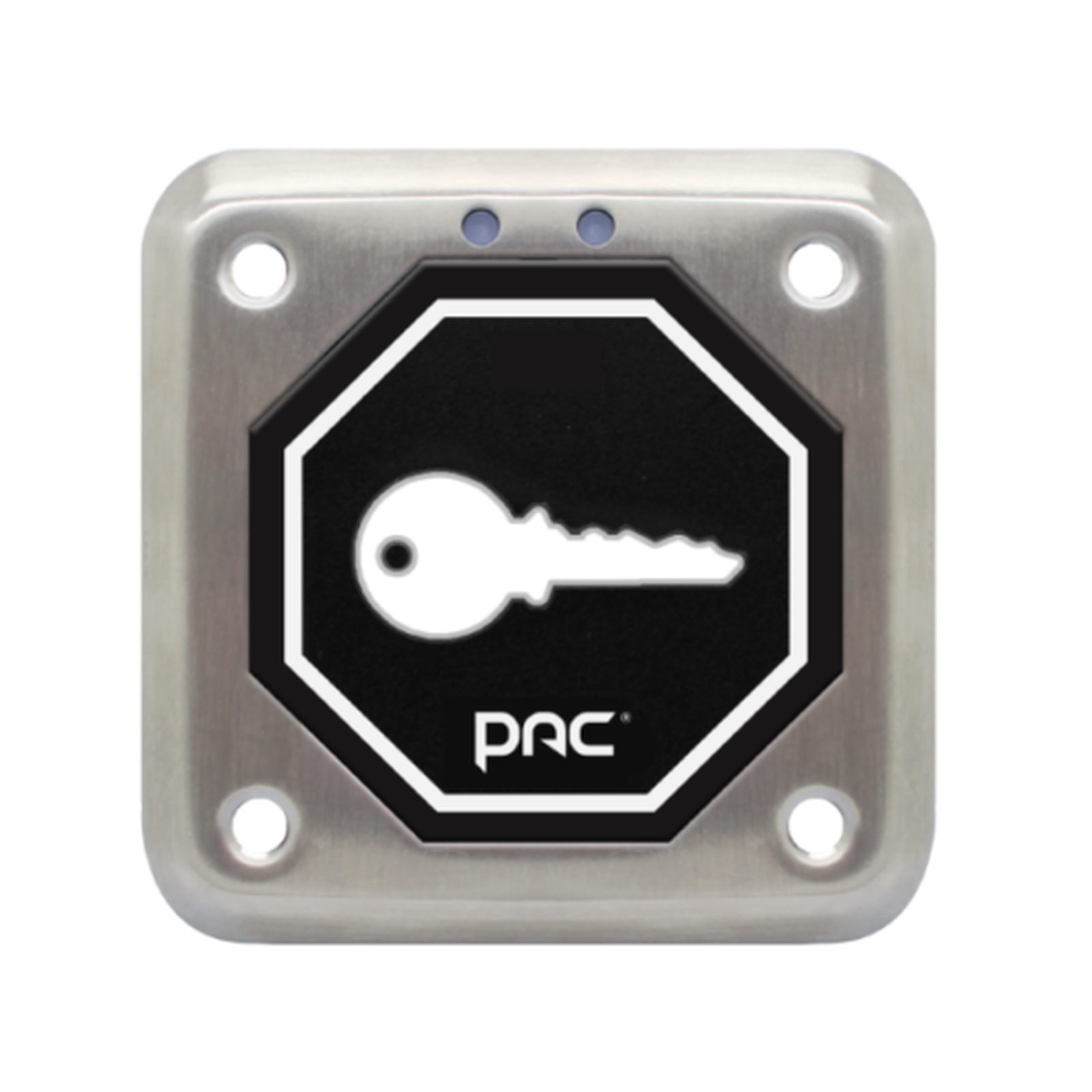

Comelit PAC RFID High Frequency Vandal Resistant Reader Black & White

SKU: 909020118Brand: Comelit-PAC
4.6store rating from 122 reviews
Stock available Qty Delivery
Poole0None in Poole
UK Hub131 to 3 working days
Need help choosing? Our UK team can check compatibility, stock and project pricing for you. 0117 440 4505info@jemsystems.co.uk
Price:
Sale price$291.00
349.20 inc. VAT291.00 ex VAT
Stock:
In stock (13 units)
Delivery
1 to 3 working days
Ships from our UK supplier hub
Collect in Poole
Not stocked in Poole
Delivery only
Comelit PAC RFID High Frequency Vandal Resistant Reader Black & White $291.00
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
American Express Apple Pay Google Pay KlarnaMaestroMastercard PayPalShop Pay Visa
Key featuresFull details
  • Grade 304 stainless steel housing, IP67 for indoor or outdoor use
  • Certified to EN 50131-1 and EN 50131-3, Security Grade 3
  • Raised key symbol with audible and visual feedback for Equality Act compliance
  • Supports PAC OPS, PAC OPS Lite and many Wiegand variants
  • Integral tamper circuit with wall sensor; reader line tamper with PAC 512 controllers
  • Pre-connected 2 m cable

Frequently bought together

Comelit PAC RFID LF Standard Reader
Comelit Plastic Cover for Manual Call Point (Pack 5)
Comelit Power Supply Unit 33VDC for Ikall Entrance Panel

Product details

The Comelit PAC 909020118 is a high-frequency (13.56 MHz) vandal-resistant access control reader from the PAC GS3 range. It is a robust, intruder-graded reader for internal or external doors, rated IP67 and certified to EN 50131-1 and EN 50131-3 Security Grade 3. It reads PAC OPS and OPS Lite credentials and outputs PAC64, PAC32 or Wiegand for PAC and other access controllers.

Key features

  • Grade 304 stainless steel housing, IP67 for indoor or outdoor use
  • Certified to EN 50131-1 and EN 50131-3, Security Grade 3
  • Raised key symbol with audible and visual feedback for Equality Act compliance
  • Supports PAC OPS, PAC OPS Lite and many Wiegand variants
  • Integral tamper circuit with wall sensor; reader line tamper with PAC 512 controllers
  • Pre-connected 2 m cable

Technical specifications

  • Part number: 909020118
  • Supported credentials: PAC OPS, PAC OPS Lite
  • Supported output protocols: PAC64, PAC32, Wiegand
  • RFID frequency: high frequency (13.56 MHz)
  • Distance to controller: 70 m (reader powered from controller), 500 m (locally powered reader)
  • Recommended cabling: PAC output 6-core 24 AWG 0.22 mm² alarm cable (unscreened)
  • Maximum read range: 40 mm
  • Indicators: audible sounder and red/green LEDs
  • Power input: 12-24 V DC, <100 mA at 12 V DC
  • Dimensions: 103 x 103 x 17.5 mm (W x H x D)
  • Weight: 0.442 kg
  • Material: stainless steel grade 304
  • Environment: IP67, indoor/outdoor
  • Operating temperature: -40 °C to +66 °C
  • Operating humidity: 10% to 85% RH
  • Warranty: lifetime against electronic failure
  • Standards: UKCA, CE, FCC, IC, RoHS and WEEE
