Paxton 857-250 12V 2A DC Power Supply Plastic Cabinet

Paxton 12V 2A DC Power Supply Plastic Cabinet

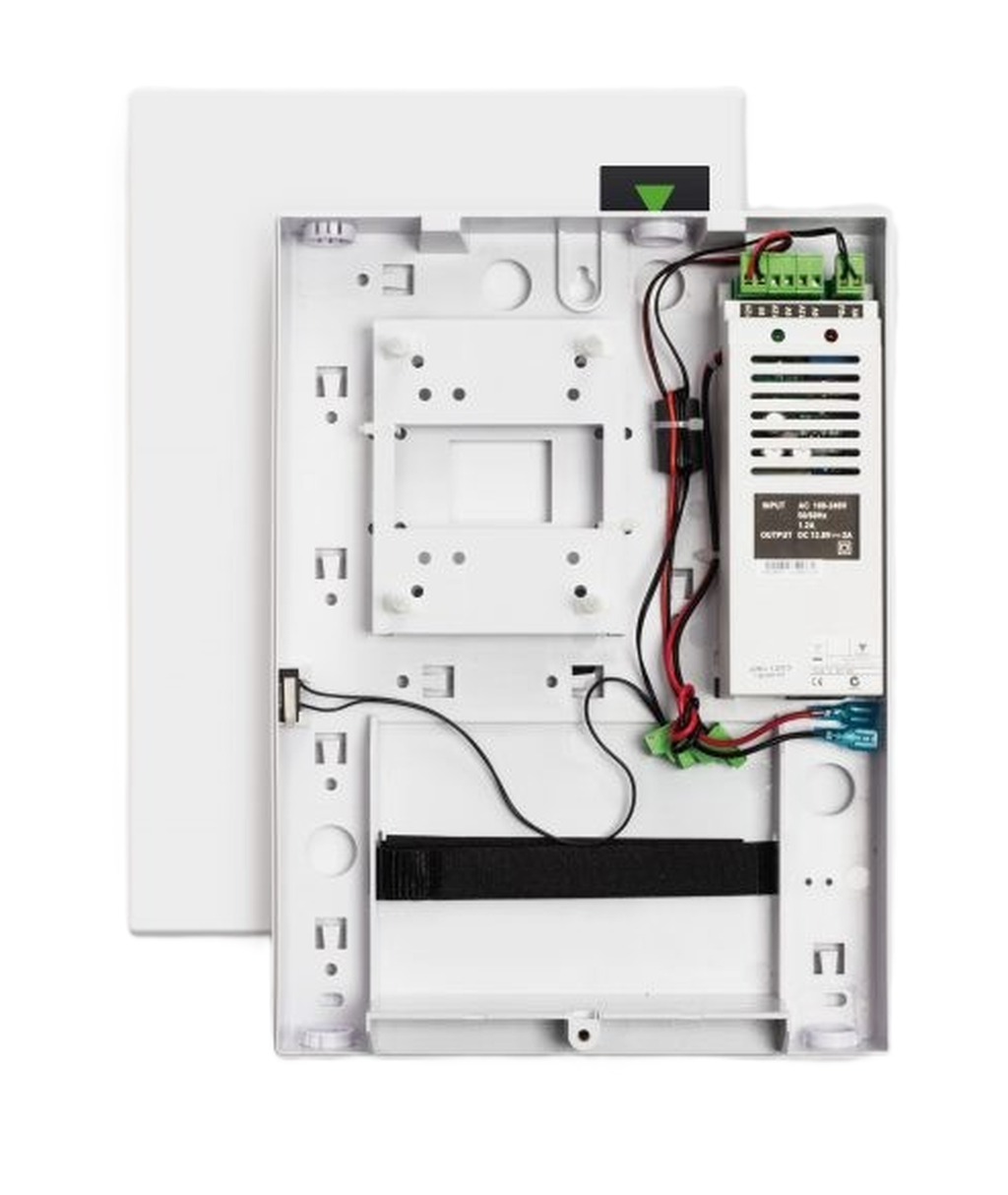

The Paxton 857-250 is a 12V 2A access control power supply in a plastic cabinet, with room for a Net2 or I/O ACU and a backup battery.

The Paxton 857-250 is a 12 V 2 A DC boxed backup power supply in a plastic cabinet for Paxton access control systems. It connects to a standard UK mains supply via a switched fused spur, and with a suitable backup battery fitted it continues to supply 12 V DC for an extended period during a mains failure.

Key features

• 12 V DC, 2 A switch mode power supply
• Room in the cabinet for the PSU plus a Net2 or I/O ACU
• Space for an optional 12 V 7 Ah backup battery
• Tamper switch registers an alarm if the lid is opened when connected to an ACU or I/O board

Technical specifications

• Sales code: 857-250
• Input: 100 to 240 V AC (1.2 A), 50 to 60 Hz
• Output: 12 V DC, 2 A
• PSU type: switch mode
• ACU integration: Net2 Plus, Net2 classic, Net2 nano, I/O board
• Operating temperature: 0 to +45°C
• Environment: indoor; if used externally it must be protected in a weatherproof housing

Used for: powering Paxton Net2 door controllers and locks. An unboxed version is available as the Paxton 857-090.

Frequently Asked Questions

Does it have battery backup?

Yes. With a suitable 12V 7Ah backup battery fitted (optional), it continues to supply 12V DC during a mains failure.

Which Paxton controllers fit inside?

Net2 Plus, Net2 classic, Net2 nano and the I/O board.

Can it be used outdoors?

It is for indoor use; if used externally it must be protected in a weatherproof housing.
