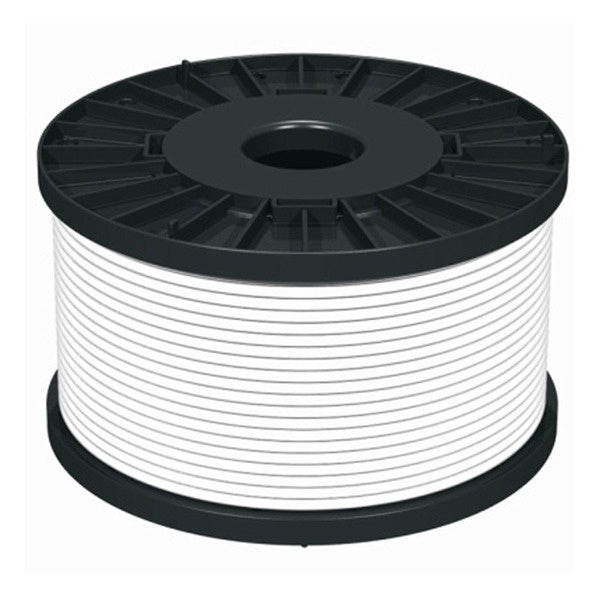

Prysmian FP200 Gold 2 Core 4mm Fire Resistant Cable (White) (FP200GOLD2C&E4W)

Prysmian FP200 Gold is a “Standard” fire resistant cable designed to BS 7629-1 for fire detection and fire alarm systems, voice alarm, emergency lighting and other life safety control circuits in buildings. This 2 core 4mm² version with an un-insulated tinned copper circuit protective conductor (CPC) has a white Low Smoke, Zero Halogen sheath. It suits buildings where BS 5839-1 and BS 5266-1 call for “Standard” fire resistance.

Key features

• Fully screened: pliable aluminium tube construction that can be dressed to the cable route without spring-back
• Full size un-insulated tinned copper CPC in direct contact with the screen
• Tough, hard-skin INSUDITE® insulation, EI5 to BS EN 50363-5, resists nicks and cuts during termination; no ferrules needed
• Low Smoke, Zero Halogen (LSOH) sheath bonded to the screen for quick, one-piece sheath removal
• No chalk, powders or glass-fibre tapes inside the cable, so termination is cleaner
• Suitable for BS 5839-1 (fire alarms) and BS 5266-1 (emergency lighting) “Standard” fire resistance, and BS 8519 “Control” Category 1
• Assessed and certified by LPCB and BASEC; manufactured under ISO 9001

Technical specifications

• Construction: 2 cores + CPC, 4mm² nominal cross-sectional area
• Standard: BS 7629-1
• Rated voltage: 300/500 V
• Approximate overall diameter: 12mm
• Sheath colour: White
• Fire tests: BS EN 50200 (30, 60 and 120 minutes, 830°C flame with impact) and BS EN 50200 Annex E (30 minutes with water spray)
• Matching Prysmian accessories: nylon FP gland 403PR52, AP11 clip (386PW11 white)
