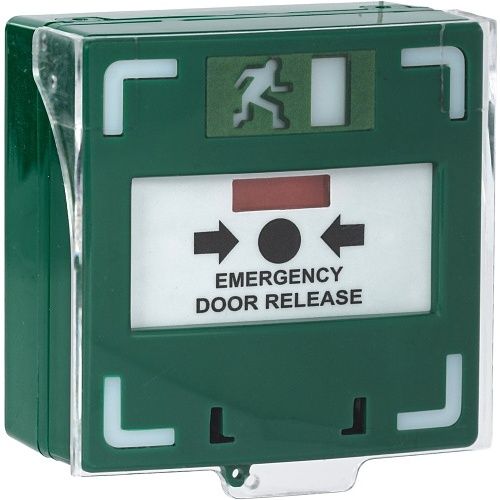

The EDR-IL-TP is a triple pole, resettable emergency door release unit designed for internal use. It features audible and LED indication, supporting 12V or 24V operation, and is permanently lit for visibility. Upon activation or alarm, the LED changes to red for clear status indication.
Main Features
Electrical specs: 125V/3A contact load, 75mA active current, and 41mA standby current
Operating range: -10°C to +55°C
IP24 rated for protection against splashes and objects >12.5mm
Resettable via key – no glass replacement required
User-friendly design: single-colour housing, easy-clean surface with protective plastic front cover

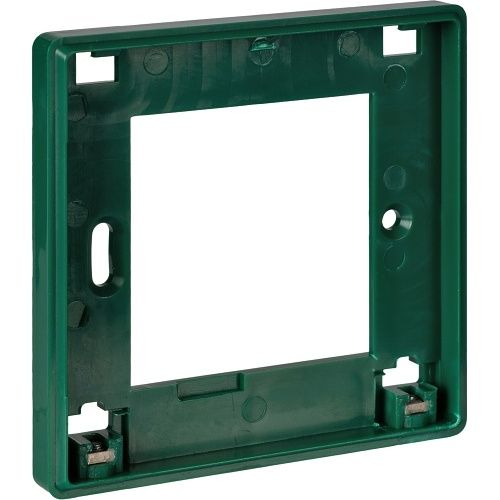

Flexible installation: easy cable entry from the sides or rear, and screw footprint compatible with standard back boxes
