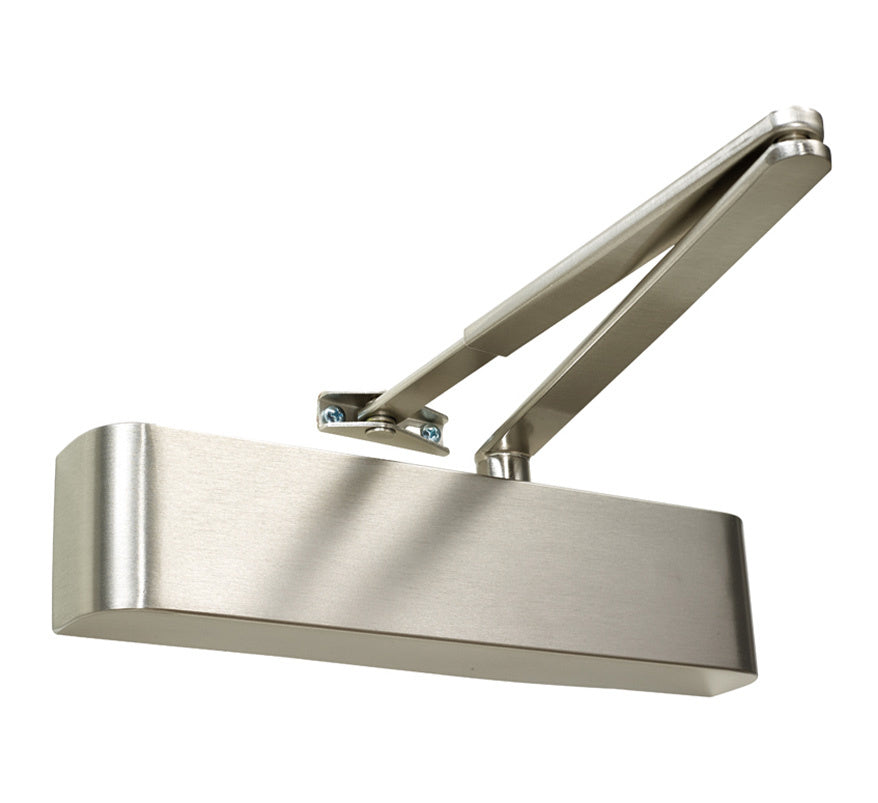

Rutland TS.5204 Variable Power EN2-4 Overhead Door Closer - Satin Nickel Plate (TS.5204BC.SRFB.SNPSNP)

The Rutland TS.5204 is an economical, power-adjustable scissor arm overhead door closer with back check as standard, supplied here as the combined unit (TS.5204BC.SRFB.SNPSNP) in a satin nickel finish. Low opening force helps meet BS 8300 and Approved Document M requirements, and it is fire tested for FD30 to FD120 timber doors.

Key features

• Adjustable power size EN2 to EN4, set by spring
• Back check as standard
• Low opening force, assists BS 8300 (suitable for Doc M contracts)
• Universal fitting: standard, parallel arm or transom
• Certifire approved (CF6018), CE and UKCA marked
• Easy-to-use template fitting instructions

Technical specifications

• Product code: TS.5204BC.SRFB.SNPSNP
• Finish: Satin Nickel
• Power size: EN2 to EN4, adjustable by spring
• Maximum door width: 1100 mm (pull side 360 to 1100 mm; push side 485 to 985 mm)
• BS 8300 door width: 920 mm (fig. 1), 887 mm (fig. 66)
• Maximum door weight: <80 kg
• Opening angle: 180° pull side; 105° parallel arm push side
• Fire rating: FD30 to FD120 timber doors
• Certification: Certifire CF6018, CE 1812, BS EN 1154, BS EN 1634-1, BS EN 1634-3
• Dimensions (including cover): W 258 x H 68 x D 45 mm
• Hold-open: optional (not for fire doors)

What's in the box

• Door closer with back check
• Flat bar armset
• Cover
• Parallel arm (PA) bracket
