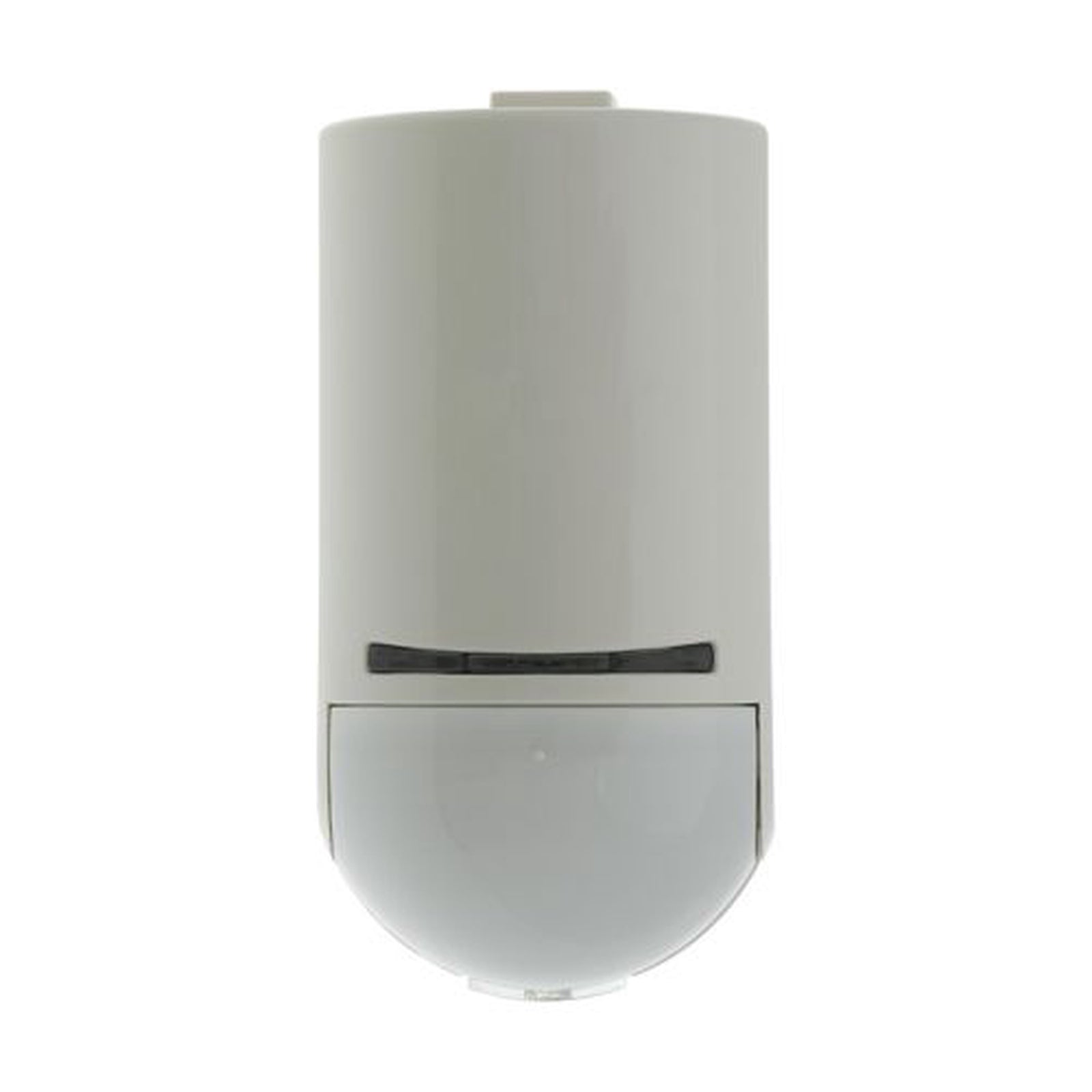

The Scantronic DET-2R-PIR is a wireless pet-tolerant PIR motion detector for Eaton Scantronic intruder alarm systems.
It uses Scantronic Secure Radio (SSR), with two-way encrypted communication and over-the-air updates, and can be switched to Legacy mode for compatibility with legacy Scantronic radio panels. It detects body-heat movement within a fan-shaped area up to 12 m in radius.
Key features
- Scantronic Secure Radio (SSR) two-way communication with automatic channel swapping
- Switchable between SSR mode and Legacy mode
- Pet tolerance up to 25 kg, which can be enabled or disabled wirelessly
- Detection up to 12 m radius; wall or corner mounting
- Front and rear tamper protection
- Runs on standard AA batteries, with up to 5 years' typical battery life
Technical specifications
- Part number: DET-2R-PIR
- Security grade: Grade 2; environmental class II
- Radio frequency: 868 to 868.5 MHz (SSR mode); 868.6625 MHz (Legacy mode)
- Battery: 2 x AA alkaline
- Typical battery life: 5 years
- Pet tolerance: up to 25 kg
- Operating temperature: -10°C to +55°C
- Humidity: up to 95%
- Dimensions (L x W x D): 115 x 55 x 55 mm
- Weight: 150 g
- IP rating: IP40
- Colour: white
