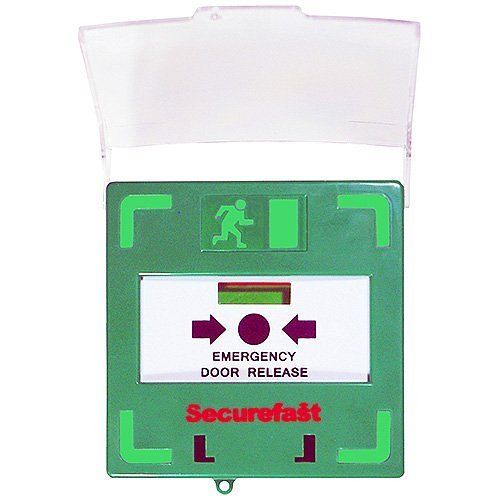

The Securefast ACP350 triple pole call point is designed for optimum security and visibility. The ACP350 shows a green box when the unit is in the locked state. If the unit is activated by pressing the emergency panel the door will unlock and the unit will flash red in addition to a sounder being activated.
Main Features
Alarm sounder included (can be set to silent, interval or continuous)
Surface mount (can also be fitted flush)
Dual light activation confirmation
Easy to assemble and install
Clear hinged cover included
Resettable via supplied key
Resettable activation panel
Input voltage 12-24V DC
Buzzer sound - 70db
Triple pole contact
Specifications
Application/Usage
Door; Emergency
Compatibility
Fire Alarm System
Cover
Yes
Depth
64.00mm
Features
Buzzer; Easy to install; Flush Mount; LED Indicator; Resettable; Surface Mount; Triple pole
Height
90.00mm
Indoor/Outdoor
Indoor
Ingress Protection Rating
IP44
Input Voltage
12V DC; 24V DC
Limited Warranty
1-Year
Material
ABS case with polycarbonate operating element
Mount Type
Surface Mount
Package Contents
ACP350 Triple Pole Emergency Call Point with Dual Light and Buzzer
