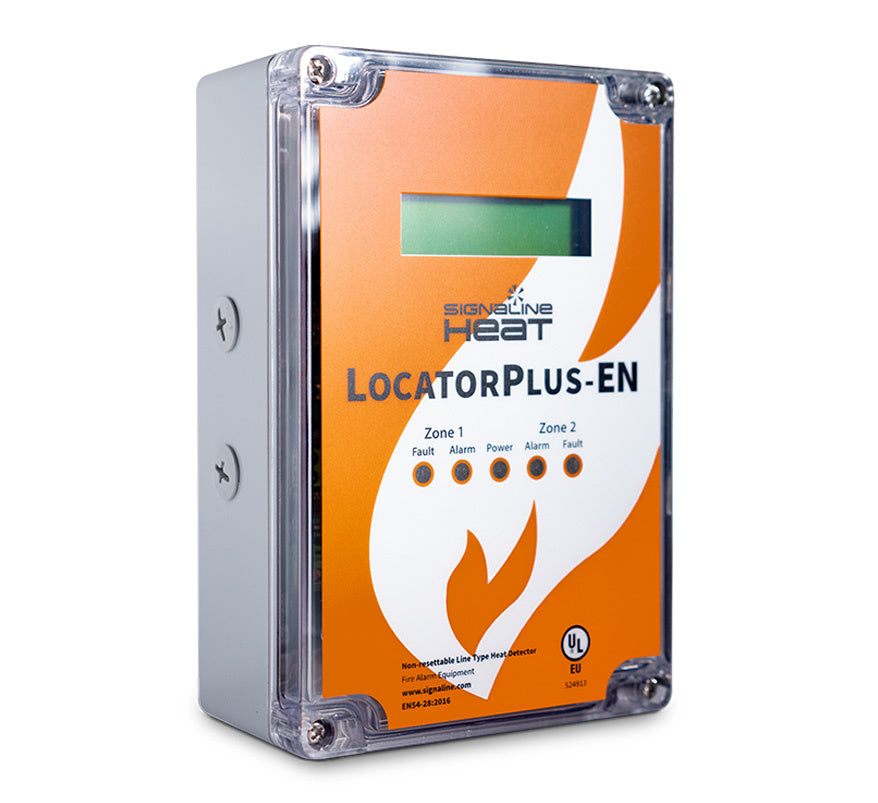

Signaline LocatorPlus-EN Linear Heat Detector Controller (SLP-002)

The Signaline LocatorPlus-EN (SLP-002) is a dual zone monitor module for Signaline FT-EN linear heat detection cables, approved to EN 54-28. Each zone can monitor up to 1,000 m of cable, and in the event of an alarm the unit immediately displays the alarm location and zone of the activation. Used with Signaline FT-EN cable and the FT-EOL-EN end-of-line unit, it forms a complete EN 54-28 approved system. It needs no specialist software or programming tools.

Key features

• Monitors 2 zones of up to 1,000 m each
• Independent or interlocking operating modes
• Displays alarm location and zone on activation
• 2-line, 16-character backlit display with zone status
• IP65 enclosure suitable for field mounting
• Two-wire RS-485 Modbus RTU communications
• Compatible with Signaline FT-68-EN, FT-78-EN and FT-88-EN cables (including CAT and S variants)

Technical specifications

• Model: Signaline LocatorPlus-EN (SLP-002)
• Approvals: EN 54-28:2016; UL file no. S24913
• Dimensions: 180 x 120 x 60.5 mm (H x W x D)
• IP rating: IP65
• Finish: light grey with clear lid, orange faceplate
• Operating voltage: 12 / 24 / 36 V DC
• Operating current: <15 mA / <7 mA / <5 mA
• Alarm current: <40 mA / <23 mA / <15 mA
• Operating temperature: -20°C to +50°C (-4°F to +122°F)
• Terminal blocks: 5 mm rising clamp, 16 A, wire size 0.08 mm² (28 AWG) to 4 mm² (11 AWG)
• Supervised circuits: power, input zone 1 and input zone 2
• Zone length: 1 to 1,000 m (3,280 ft)
• End-of-line resistor: 3.6 kΩ (included)
• Short circuit current: 0.5 mA; maximum zone voltage: 5 V
• Sounder: 2.4 kHz buzzer, 92 dBA at 10 cm
• Alarm outputs: 2 x Form C volt-free relay contacts, max 30 V AC or 42.4 V DC, 2 A, 60 W / 62.5 VA
• Fault outputs: 2 x opto-isolated phototransistor, max 35 V DC, 80 mA, 150 mW
