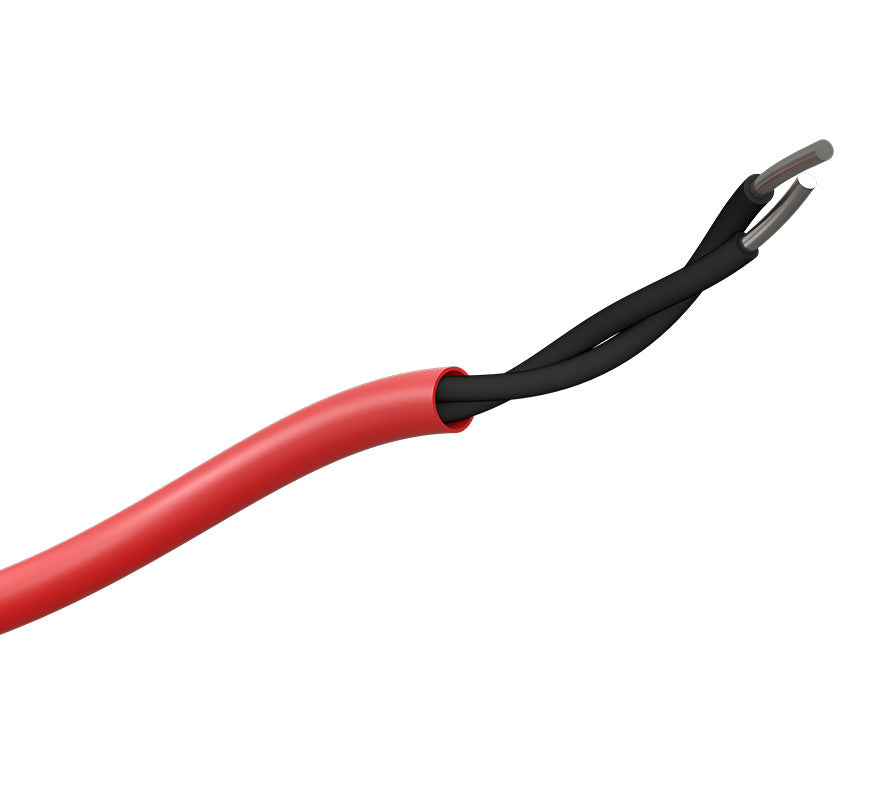

Signaline UL/cUL 185°C Fixed Temperature Linear Heat Detector (Red Nylon Sheath) (50m) (SL-FT-185-R)

Signaline FT-185-R is a fixed temperature linear heat detector cable manufactured in the UK by LGM Products. It detects a build-up of heat anywhere along its length: when any point on the cable reaches the fixed alarm temperature of 185°C an alarm is initiated. The cable can be connected to conventional and addressable fire detection systems, or monitored by the Signaline LocatorPlus dual zone monitor module. This listing is for a 50 m length.

Key features

• Fixed alarm temperature of 185°C
• Up to 3,000 m per zone
• Protective nylon sleeve
• Compatible with conventional systems, addressable systems and the Signaline LocatorPlus dual zone monitor module
• Suitable for hazardous areas
• Approved to UL, cUL

Technical specifications

• Model: Signaline FT-185-R (SL-FT-185-R)
• Alarm temperature: 185°C (365°F)
• Maximum ambient temperature: 125°C (257°F)
• Conductor resistance: 0.1 Ω/m (0.029 Ω/ft) at 20°C
• Maximum voltage: 42 V DC or 30 V AC
• Dielectric withstand (UL): 500 V DC
• Tensile strength: 1700 N/mm²
• Minimum bend radius: 75 mm
• Overall diameter: 3.6 mm
• Weight: 12 kg per 500 m
• Outer sheath material: chemical-resistant nylon
• Colour: red
• Approvals: UL, cUL
• Length supplied: 50 m
