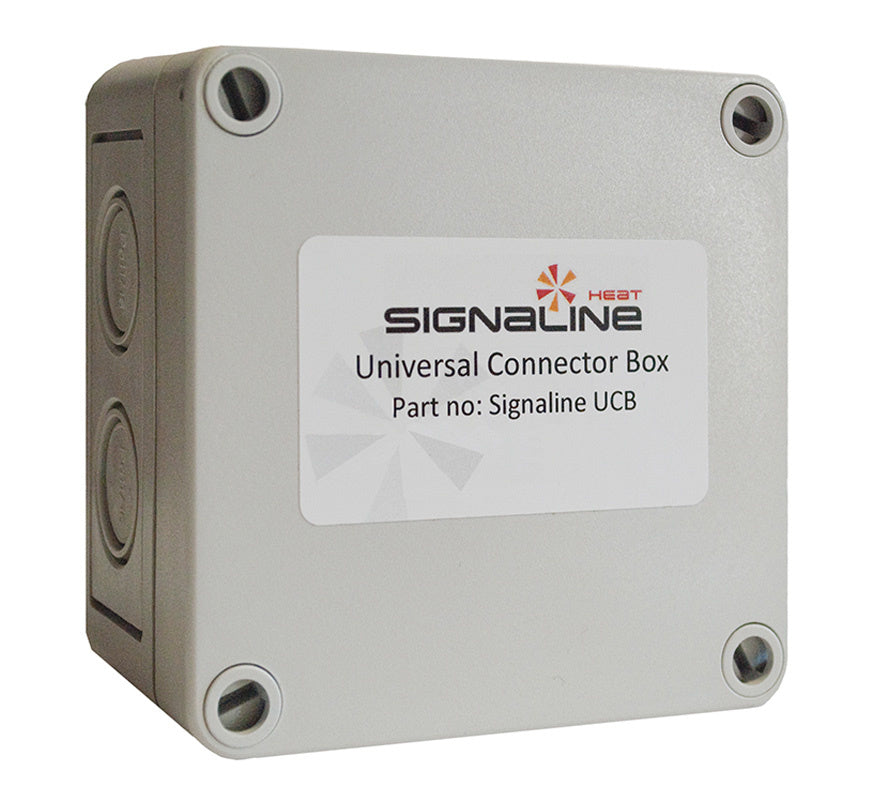

The Signaline Universal Connector Box (SL-UCB) is a multi-purpose IP66 enclosure for Signaline FT, FT-R and FT-EN linear heat detection cable. The kit can be configured as an end-of-line enclosure, a junction box or an interposing line unit, reducing on-site time and cost. Its components are selected to withstand temperatures higher than the maximum alarm temperature of Signaline cable.
Key features
- Configurable as an end-of-line enclosure, junction box or interposing line unit
- Supplied with 470Ω and 680Ω resistors, allowing Signaline FT cable to connect directly to the zone terminals of most conventional fire control panels
- Heat-rated terminals and glands
- Resistant to most acids, alkalis and oils
- With FT-EN cable, use as a junction box or interposing line unit only (the FT-EOL-EN must be used as the end-of-line box)
- Not for use with Signaline HD+
- Made in the UK
Technical specifications
-
Model: Signaline UCB
-
Dimensions: 94 x 94 x 54mm
-
Pack weight: 0.1kg
-
IP rating: IP66
-
Mounting: Wall
-
Material: Polycarbonate enclosure with non-ageing polyurethane seal
-
Colour: Grey (RAL 7035)
-
Operating temperature: -35°C to +120°C
-
Compatibility: Signaline FT, FT-R and FT-EN
What's in the box
- 1 x enclosure with 4 lid screws and 4 screw caps
- 1 x PG16 cable gland and 2 x PG9 cable glands
- 2 x PG16 to PG9 reducers, 2 x locking rings, 4 x O-rings
- 1 x terminal block and holder
- 1 x 470Ω resistor and 1 x 680Ω resistor
