Signaline FT-EN 2 Zone End of Line Unit for Linear Heat Detection System (SL-FT-EOL-EN)
SKU: Sl-FT-EOL-ENBrand: Signaline
| Out of stock | Qty | Delivery |
|---|---|---|
| All locations | 0 | Lead time 2 to 6 weeks, estimate only |
Need help choosing?
Our UK team can check compatibility, stock and project pricing for you.
0113 518 0540info@jemsystems.co.uk
Signaline FT-EN 2 Zone End of Line Unit for Linear Heat Detection System (SL-FT-EOL-EN)
£169.75
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- Terminates up to two zones of FT-EN cable (including stainless steel coated versions)
- Built-in switches to simulate fault and alarm conditions, so the whole system can be functionally checked in situ
- IP66 enclosure approved to environmental group III for tough environments
- UV and chemical resistant
- Two IP67 cable glands included
- Suitable for safe and hazardous-area installations (see Signaline hazardous-area guidance)
Frequently bought together
Signaline
Signaline FT-EN 78°C Linear Heat Detection Cable with Catenary Wire (White) (50m) (SL-FT-78-EN-CT)
Sale price£5.80
Out of stock. Lead time 2 to 6 weeks, estimate only
Signaline
Signaline FT-EN 78°C Non-Resettable Linear Heat Detection Cable (50m) (SL-FT-78-EN)
Sale price£196.90
Out of stock. Lead time 2 to 6 weeks, estimate only
Signaline
Signaline FT-EN 88°C Linear Heat Detection Cable with Catenary Wire (White) (50m) (SL-FT-88-EN-CT)
Sale price£5.80
Out of stock. Lead time 2 to 6 weeks, estimate only
Signaline
Signaline FT-EN 88°C Non-Resettable Linear Heat Detection Cable (50m) (SL-FT-88-EN)
Sale price£3.95
Out of stock. Lead time 2 to 6 weeks, estimate only
Signaline
Signaline HD+ Programmable Linear Heat Detection Cable (50m) (SL-HDP-LHC)
Sale price£6.45
Out of stock. Lead time 2 to 6 weeks, estimate onlyProduct details

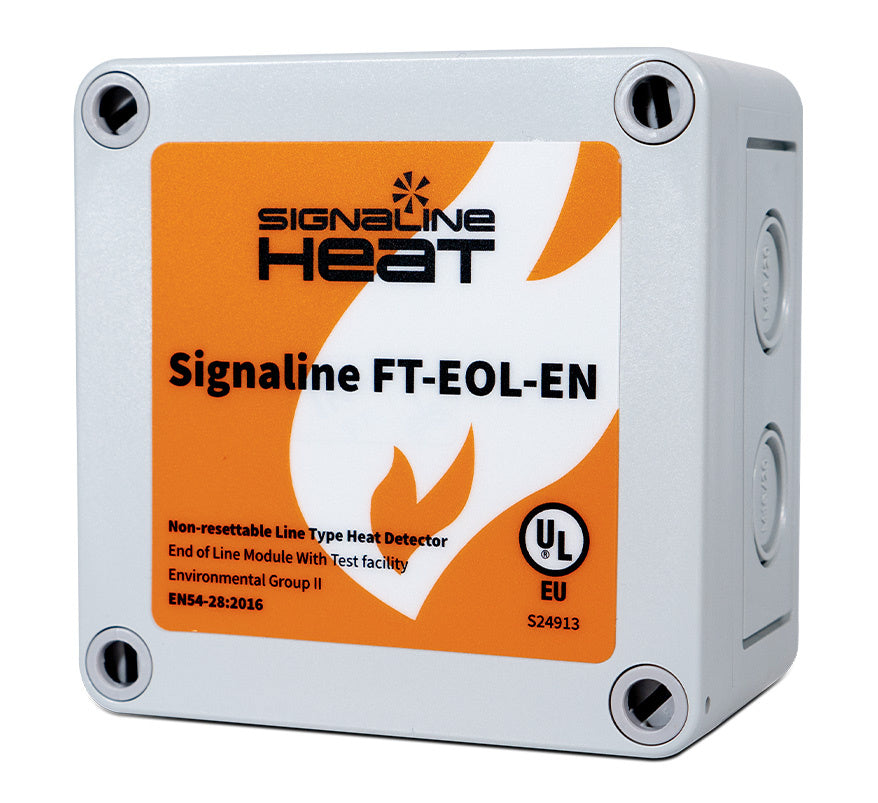

The Signaline FT-EOL-EN is a dual-zone end-of-line termination unit for Signaline FT-EN linear heat detection cables. Used with the Signaline LocatorPlus-EN control unit and FT-68-EN, FT-78-EN or FT-88-EN cable, it forms part of a complete system approved to EN 54-28:2016, and it terminates up to two zones of cable in a secure, weatherproof enclosure.
Key features
- Terminates up to two zones of FT-EN cable (including stainless steel coated versions)
- Built-in switches to simulate fault and alarm conditions, so the whole system can be functionally checked in situ
- IP66 enclosure approved to environmental group III for tough environments
- UV and chemical resistant
- Two IP67 cable glands included
- Suitable for safe and hazardous-area installations (see Signaline hazardous-area guidance)
- Made in the UK
Technical specifications
- Model: Signaline FT-EOL-EN
- Dimensions: 94 x 94 x 57mm
- Pack weight: 0.1kg
- IP rating: IP66, environmental group III
- Mounting: Wall mounted, 4 x Ø4mm holes, 79mm apart
- Material: Polycarbonate enclosure with non-ageing polyurethane seal
- Colour: Grey (RAL 7035)
- Operating temperature: -35°C to +55°C
- Terminal blocks: EOL: 2 x 5mm rising clamp; cable: 2 x removable 5mm rising clamp headers
- Cable glands: 2 x IP67 (included)
- Approvals: EN 54-28:2016 (UL-EU-01128-CPR), CE, RoHS
