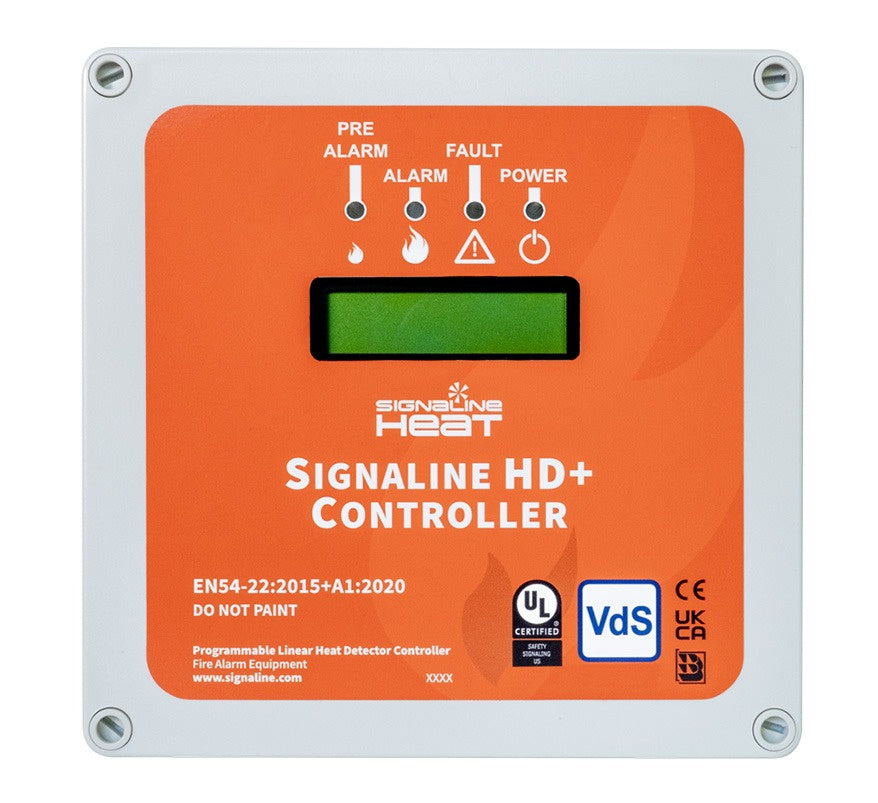

Signaline HD+ Programmable Linear Heat Detection Controller (SL-HDP-CTL)

The Signaline HD+ Controller is the fully programmable control unit for the Signaline HD+ programmable linear heat detection system, manufactured in the UK by LGM Products and approved to EN 54-22 and UL 521. It continuously checks the HD+ sensor cable for temperature changes and lets the user set alarm and pre-alarm thresholds to suit the area, level of risk, approval standard and alarm temperature required. The system can be reset manually at the controller or automatically after a heat event, without replacing the detection cable.

Key features

• Programmable alarm and pre-alarm thresholds
• Resettable system: no need to replace the cable after an over-heat event
• Alarm and pre-alarm Form C relay outputs plus opto-isolated fault output
• 2-wire RS-485 Modbus output
• IP65, IK08 enclosure
• For use with Signaline HD+, HD+ R or HD+ S cable and the HD+ EOL unit

Technical specifications

• Model: Signaline HD+ Controller (SL-HDP-CTL)
• Alarm class: EN 54-22:2015+A1:2020 (Class A1I, A2I and BI); UL 521
• Operating temperature: -20°C to +50°C
• Operating voltage: 20–30 V DC (VdS EN 54); 23–30 V DC (UL)
• Current consumption (without LCD backlight): 31 mA at 20 V DC to 20 mA at 30 V DC
• Current consumption (without LCD backlight, in alarm): 61 mA at 20 V DC to 39 mA at 30 V DC
• Current consumption (with LCD backlight, in alarm): 85 mA at 20 V DC to 59 mA at 30 V DC
• Alarm outputs: alarm and pre-alarm Form C, 2 A at 30 V DC resistive (60 W), 0.25 A at 250 V AC resistive (62.5 VA)
• Fault output: normally closed opto-isolated phototransistor, max 35 V DC, 80 mA, 150 mW
• Modbus output: 2-wire RS-485 Modbus RTU or ASCII
• IP and impact rating: IP65 (IK08)
• Weight: 860 g
