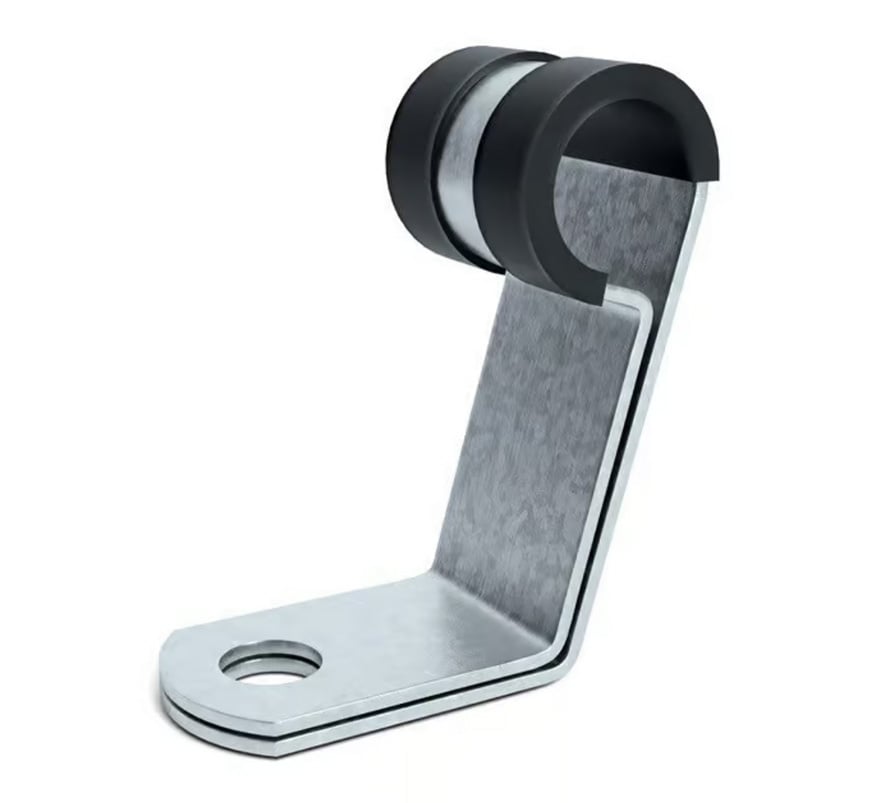

The Signaline Q-Clip (SL-FX-Q) is a one-piece ceiling fixing clip for Signaline linear heat detection cable, supplied in a pack of 100. It is designed to hold the cable with a 20mm stand-off from the ceiling in accordance with EN54 part 28, allowing air flow around the detector.
As a single-piece clip it speeds up installation and removes the need for cable ties. It is made from 316L stainless steel for very high chemical and atmospheric resistance and strength, with a UV and ozone proof EPDM liner, and fixes with an M6 screw or percussion nail (not included). It can be used with all Signaline linear heat detectors except the FT-230-X.
Key features
- 20mm stand-off from the ceiling, suitable for EN54 installations
- Single-piece design for rapid installation; no cable ties needed
- 316L stainless steel clip with UV and ozone proof EPDM insulator
- Resistant to oils and greases
- Fixes with an M6 screw or percussion nail
Technical specifications
- Pack size: 100 clips
- Pack weight: approx. 0.9kg
- Mounting: ceiling, M6 screw or percussion nail (not included)
- Material: stainless steel 316L clip; EPDM insulator
- Colour: black liner, metallic clip
- Compatibility: all Signaline linear heat detectors except FT-230-X
