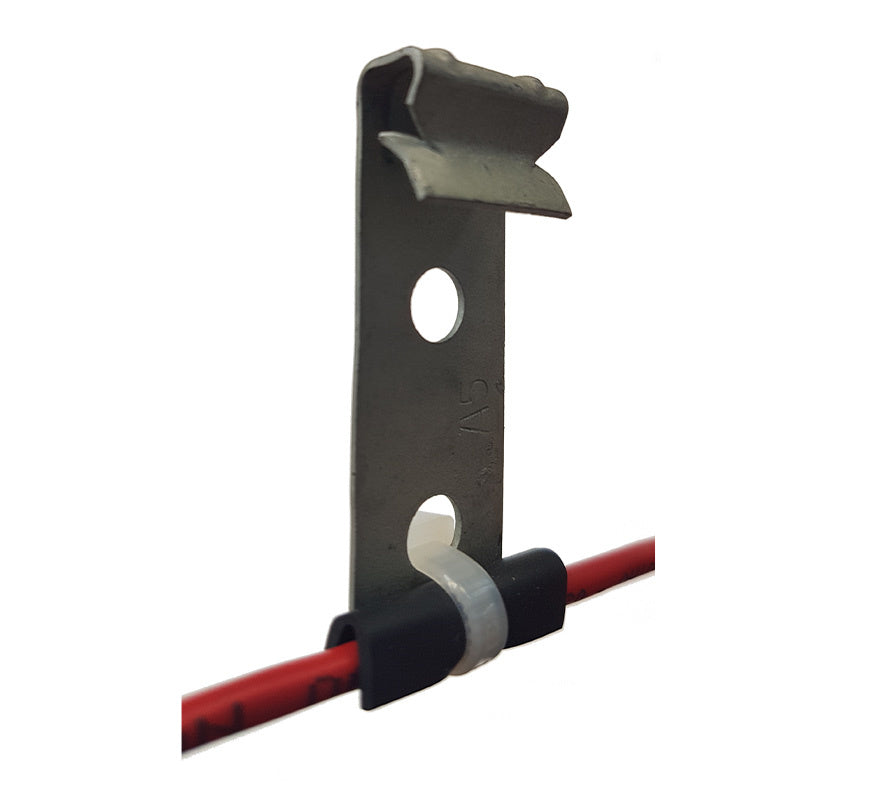

The Signaline J Clip is a knock-on clip for fixing Signaline HD and FT linear heat detector cable to steelwork of differing thickness, such as the outer edge of a conventional cable tray. The cable is secured to the clip with a neoprene sleeve so that no heat is transferred to the line-type detection cable. Supplied in a pack of 100 with sleeves and cable ties.
Key features
- Compatible with Signaline HD and FT cables
- Rapid installation
- Cost-effective
- Zinc-plated mild steel construction
- Suitable for safe and hazardous areas
Technical specifications
- Model: Signaline J Clip (SL-FX/J)
- Dimensions: 42 x 19 x 9 mm
- Pack size: 100 clips per pack
- Pack weight: approx. 0.8 kg
- Mounting: on a 1.4–4 mm wide lip (outer edge of conventional cable tray)
- Material: zinc-plated mild steel clip; neoprene cable sleeve; nylon cable tie
- Colour: grey
What's in the box
- 100 x J clips, with neoprene sleeves and cable ties
