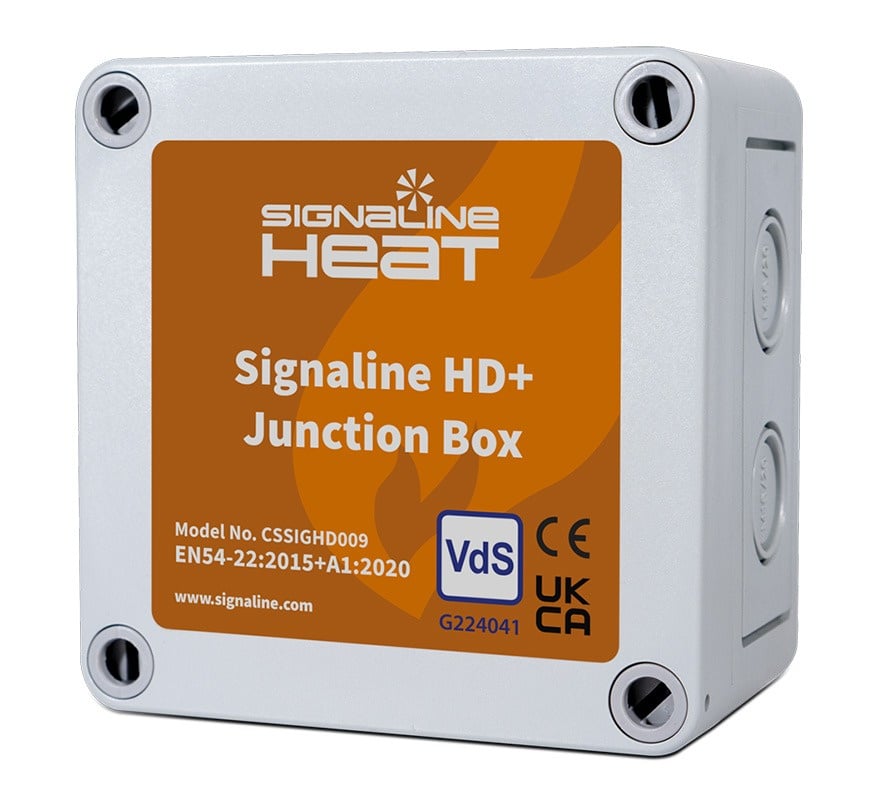

The Signaline HD+ JB (SL-HDP-JB) is the junction box for the Signaline HD+ programmable linear heat detection system, which is approved to EN 54-22 and UL. It gives a secure, easy connection between two lengths of HD+, HD+ R or HD+ S sensor cable, or between sensor cable and leader cable, in an IP rated, high-impact enclosure.
Key features
- Joins two lines of HD+ sensor cable, or sensor cable to leader cable
- Part of the resettable Signaline HD+ system, where the HD+ controller sets alarm and pre-alarm thresholds and the cable can be reset after an over-heat event
- IP65 and IK08 rated enclosure
- DIN rail mounted terminal block
- Seven M20/M16 cable entries, with two cable glands included
- Made in the UK
Technical specifications
-
Model: Signaline HD+ JB
-
System alarm class: EN 54-22:2015+A1:2020 (Class A1I, A2I and BI)
-
Operating temperature: -20°C to +50°C
-
Connections: 5-way DIN rail mounting terminal block
-
IP and impact rating: IP65 (IK08)
-
Weight: 121g
-
Cable entries: 7 x M20/M16 (2 x cable glands included)
-
Mounting: 4 x M5
