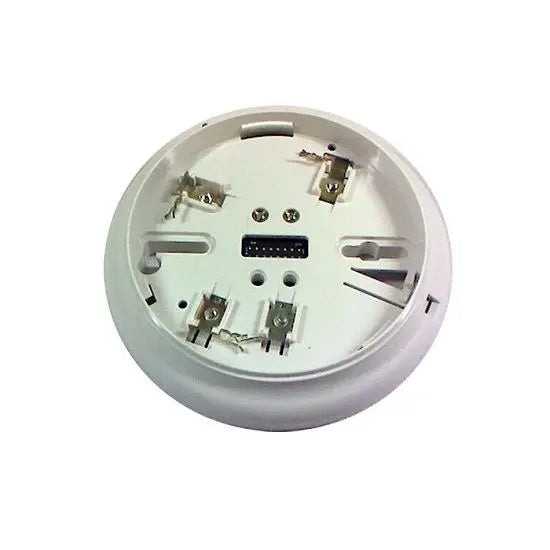

The Simplex 4098-9792 is the white TrueAlarm standard sensor base for Simplex 4098-9714 photoelectric and 4098-9733 heat sensors. The base contains the integral addressable electronics: it monitors the status of the detachable sensor and transmits its digitised output to the fire alarm control unit every four seconds over IDNet or MAPNET II.
Key features
- Address set by DIP switch under the sensor, so the address stays with its programmed location
- Integral red LED pulses to show communication and turns on steadily for alarm or trouble
- Automatic sensor identification, with default sensitivity when a different sensor type is substituted
- Locking anti-tamper design
- Magnetically operated functional test
- Standard base with no relay or remote LED options (see 4098-9789 for those)
- Mounts on a standard outlet box; 4098-9832 adapter plate available for 4in square boxes and cosmetic retrofits
Technical specifications
-
Part number: 4098-9792 (white)
-
Compatible sensors: 4098-9714 photoelectric, 4098-9733 heat
-
Communications: IDNet or MAPNET II, auto-selected, one address per base
-
Wiring terminals: Screw terminals for in/out wiring, 0.82 to 2.08mm² (18 to 14 AWG)
-
Mounting: 4in octagonal or 4in square box (min. 1 1/2in deep), or single gang box (min. 2in deep)
-
UL listed operating temperature: 0°C to 38°C
-
Humidity: 10% to 95% RH
-
Compatibility: Simplex 4007ES, 4010, 4010ES, 4100ES and 4100U fire alarm control units (and 4008 series with reduced features) on IDNet, or 4020, 4100 and 4120 series, Universal Transponders and 2120 TrueAlarm CDTs on MAPNET II
