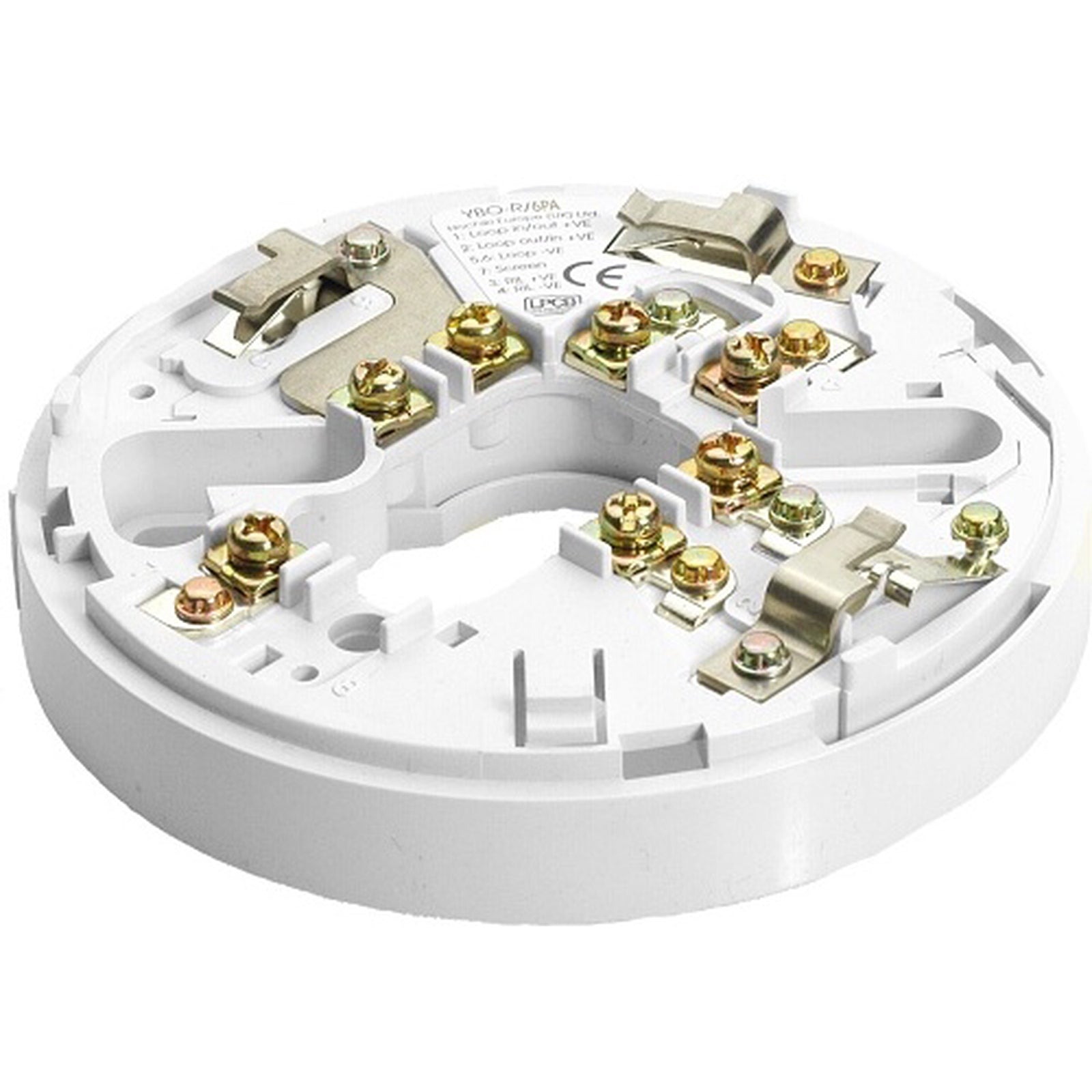

The Hochiki YBO-R/6PA is a conventional detector mounting base for 2-wire systems, where detectors and sounders share the same zone cables (control panel compatibility required). It is part of the Hochiki CDX conventional range and accepts CDX detectors via a low-insertion-force bayonet fitting. This listing is for the YBO-R/6PA(WHT) code.
Key features
- Integral remote indicator output
- Rugged design
- Dedicated cable screen terminal
- Quick connection via square cable clamps; accepts 1 to 2.5 mm² cables
- Bayonet slot, low insertion force for detectors
- Approved by LPCB
Technical specifications
- Ordering code: YBO-R/6PA(WHT)
- Operating voltage: 15-30 V DC
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +60 °C
- Maximum humidity: 95% RH non-condensing (at 40 °C)
- Material: ABS (base available in ivory or white)
- Weight: 80 g
- Dimensions: Ø100 x 13 mm (H)
- Fixing centres: 48-74 mm
- Maximum wire size: 2.5 mm²
- Compatible CDX detectors include: SOC-E3N, DCD-AE3, DCD-CE3, DFJ-AE3, DFJ-CE3, DRD-E
