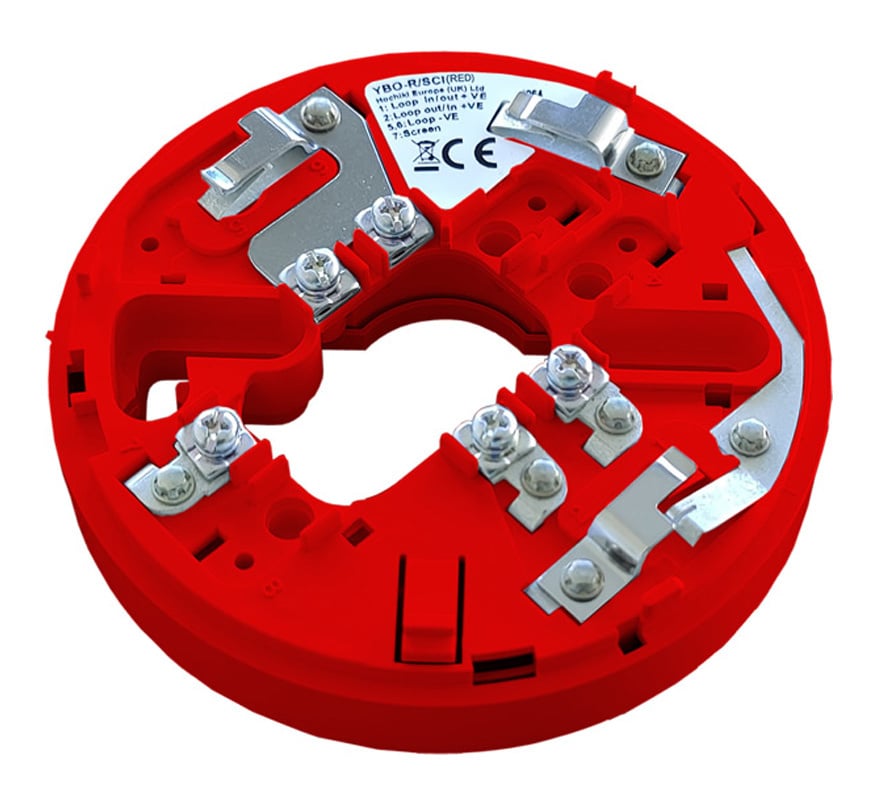

The Hochiki YBO-R/SCI(RED) is a red short-circuit isolator base for the Hochiki ESP analogue addressable system, designed for the CHQ-WS2 wall sounder and CHQ-WSB2 wall sounder beacon. An amber LED shows when it is isolating a section of the loop. It does not use a loop address and wires the same way as the standard YBN-R/3 base, so it is simple to install.
Key features
- Detects and isolates short circuits on the loop
- Amber status LED shows when isolating
- Up to 127 per loop
- No loop address required
- Bayonet slot with low insertion force
- Quick connection via square cable clamps
- Colour-matched to the CHQ-WS2 and CHQ-WSB2; also available in white
Technical specifications
- Ordering code: YBO-R/SCI(RED) (red)
- Operating voltage: 17 to 41 VDC
- Quiescent current: 50 µA (typical)
- Current in short circuit: <10 mA
- Maximum short-circuit current: 1 A
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +60 °C
- Maximum humidity: 95% RH non-condensing (at 40 °C)
- Material: ABS
- Weight: 85 g
- Dimensions: Ø100 x 13 mm (H)
- Fixing centres: 48 to 74 mm
- Approvals: LPCB, VdS
