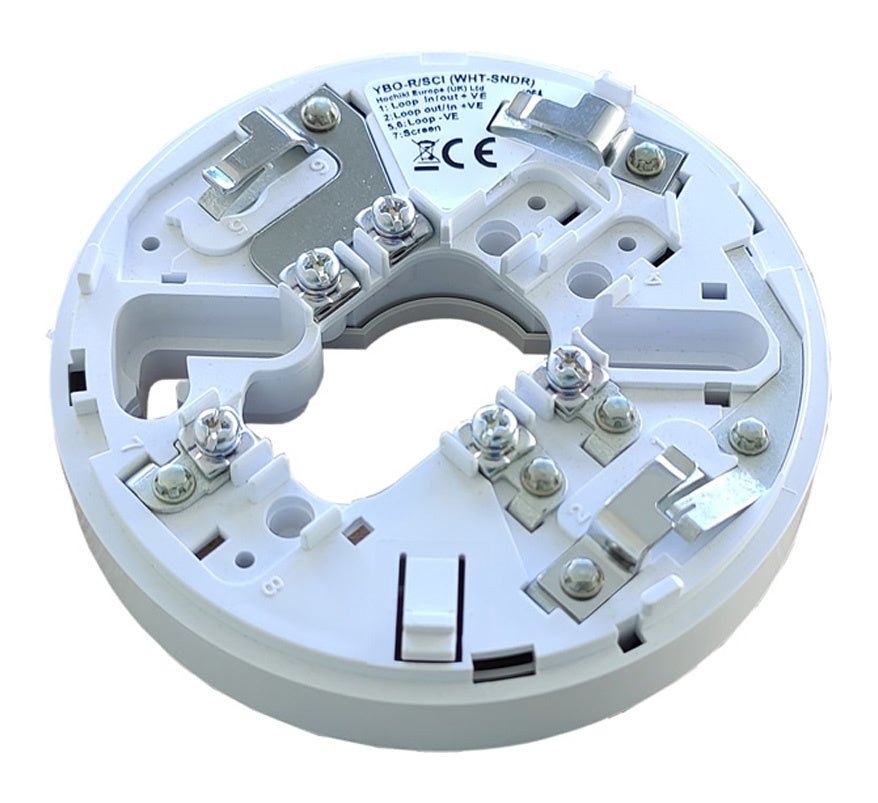

The Hochiki YBO-R/SCI(WHT/SNDR) is a white short-circuit isolator base for the Hochiki ESP analogue addressable protocol, colour-matched for use with the white CHQ-WS2 wall sounder and CHQ-WSB2 wall sounder beacon. It detects and isolates short circuits on the loop, with an amber LED to show when it is isolating. It does not use a loop address and has the same wiring configuration as the standard YBN-R/3 base, so it is simple to install.
Key features
- Detects and isolates short circuits on the loop
- Amber status LED shows when isolating
- Does not use a loop address
- Up to 127 per loop
- Quick connection via square cable clamps
- Colour-matched to white CHQ-WS2 and CHQ-WSB2 wall sounders
- Also available in red
Technical specifications
- Ordering code: YBO-R/SCI(WHT-SNDR) (white)
- Operating voltage: 17-41 V DC
- Quiescent current: 50 µA (typ.)
- Current in short circuit: <10 mA
- Maximum short-circuit current: 1 A
- Operating temperature: -10 °C to +50 °C
- Storage temperature: -30 °C to +60 °C
- Maximum humidity: 95% RH non-condensing (at 40 °C)
- Colour / material: white / ABS
- Weight: 85 g
- Dimensions: Ø100 x 13 mm (H)
- Fixing centres: 48-74 mm
- Approvals: LPCB, VdS
