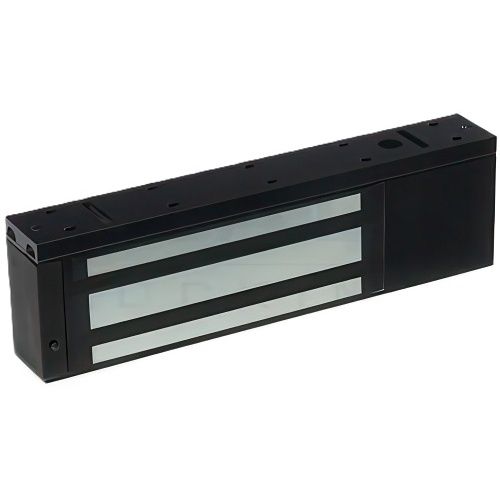

Standard single unmonitored magnetic lock designed for indoor applications where 545kg holding force is required. This model includes door status monitoring contacts to monitor the door position.
Main Features
MOV provides spike and surge protection
Fail-safe operation (power to lock)
Anti-residual magnetism protection
Top-plate, armature-plate and fixings included
Dual voltage 12Vdc or 24Vdc (selectable)
Surface mount
Stealth black finish
Door status monitoring
Fire rated
Specifications
Application/Usage
Indoor applications
Depth
40.00mm
Features
Anti-residual magnetism protection; Door status monitoring; Dual voltage 12Vdc or 24Vdc (selectable); Fail-safe operation (power to lock); Fire rated; MOV provides spike and surge protection; Reed switch door contact; Stealth black finish; Surface Mount; Top-plate, armature-plate and fixings included
Finishing
Stealth Black
Height
76.00mm
Holding Force
545.00kg
Input Voltage
12V DC; 24V DC
Limited Warranty
1-Year
Mount Type
Surface Mount
Package Contents
Armature-plate; Fixings; Top-plate
Product Type
Magnetic Lock
Weight
4.80kg
Width
268.00mm
Colour
Black
Dimensions
Armature Plate: 185 x 60 x 16 mm; Maglock: 268 x 76 x 40 mm
