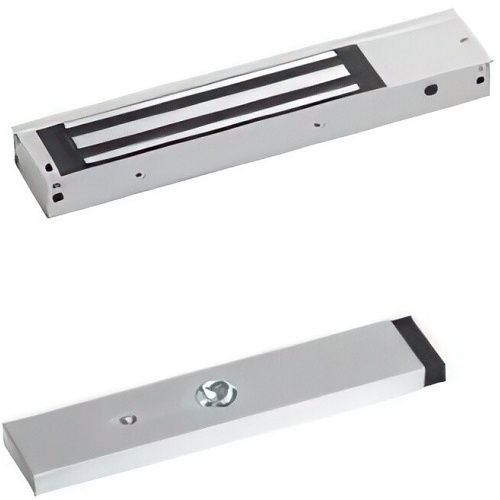

STP STP-EM01DS Slim Unmonitored Maglock with Door Status Monitoring
SKU: STP-EM01DSBrand: STP
| Available to order | Qty | Delivery |
|---|---|---|
| Pre-order | 0 | Lead time 2 to 6 weeks |
STP STP-EM01DS Slim Unmonitored Maglock with Door Status Monitoring
£38.60
Genuine stockBrand new, boxed
1 year warrantyPlus statutory rights
Secure checkoutEncrypted payments
Trade accounts30 day credit
Key featuresFull details
- MOV provides spike and surge protection
- Fail-safe operation (power to lock)
- Anti-residual magnetism protection
- Top-plate, armature-plate and fixings included
- Slim design
- Dual voltage 12Vdc or 24Vdc (selectable)
Frequently bought together
STP
STP STP-EM20DS-FIRE Standard Fire Rated Monitored Maglock with Door Status
Sale price£102.60
In stock
STP
STP STP-EM300AZLG Architectural Z and L bracket with Cover for Slim Maglock
Sale price£31.05
In stock
Product details
The compact design of this magnetic lock makes it ideal for most indoor applications where 275kg holding force is sufficient. This model includes door status monitoring contacts to monitor the door position (open or closed).
Main Features
- MOV provides spike and surge protection
- Fail-safe operation (power to lock)
- Anti-residual magnetism protection
- Top-plate, armature-plate and fixings included
- Slim design
- Dual voltage 12Vdc or 24Vdc (selectable)
- Surface mount
- Silver anodised aluminium finish
- Door status monitoring
Specifications
| Application/Usage | Indoor applications |
|---|---|
| Depth | 26.0mm |
| Features | Anti-residual magnetism protection; Door status monitoring; Dual voltage 12Vdc or 24Vdc (selectable); Fail-safe operation (power to lock); MOV provides spike and surge protection; Reed switch door contact; Silver anodised aluminium finish; Slim design; Surface Mount; Top-plate, armature-plate and fixings included |
| Finishing | Silver Anodised Aluminium |
| Height | 48.0mm |
| Holding Force | 275kg |
| Input Voltage | 12V DC; 24V DC |
| Limited Warranty | 1-Year |
| Material | Aluminium |
| Mount Type | Surface Mount |
| Product Type | Magnetic Lock |
| Weight | 2.00kg |
| Width | 250.0mm |
| Dimensions | 250 x 48 x 26 mm |
| Localization | English |
| RoHS Compliant | Compliant |
| WEEE Compliant | Compliant |
Downloads
Product datasheet
STP STP-EM01DS Slim Unmonitored Maglock with Door Status Monitoring Product datasheet · STP-EM01DS · PDF Open datasheet
