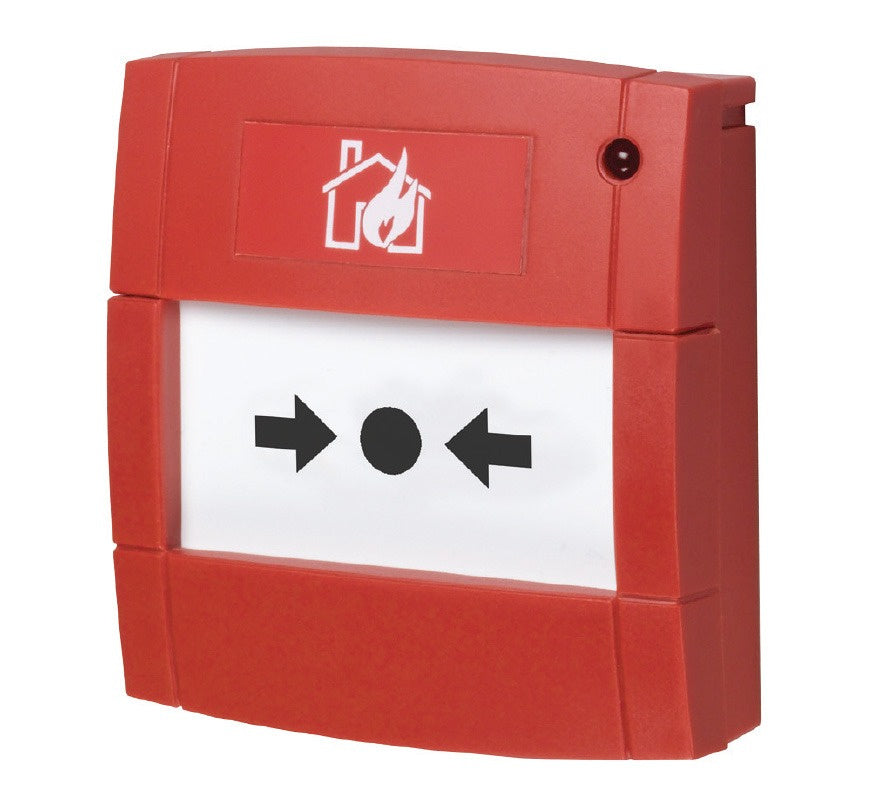

The M5A-RP02FF-K013-01 is a red, flush-mounting intelligent manual call point from the Honeywell MCP indoor range, with the Series 200 Advanced protocol embedded, a built-in short-circuit isolator and a resettable flexible operating element. It is supplied without a back box.
Key features
- Advanced Protocol embedded, with built-in isolation
- 'Plug and play' installation: field cabling terminates on a separate terminal block that plugs into the back of the call point
- Can be converted between flexible (resettable) and glass elements by swapping the element
- Anti-tamper: illegal removal of the lid operates the call point and puts the system into alarm
- Approved to EN 54-11
Technical specifications
- Mounting: flush; element: flexible (resettable); isolator: yes
- Maximum voltage: 32 V DC
- Standby current: 80 µA (24 V, no comms); 120 µA (24 V, with comms)
- Operating current: 7.0 mA at 24 V DC
- Cable termination: 0.5–2.5 mm²
- Operating and storage temperature: -10°C to +55°C
- Humidity: 93 ± 3% non-condensing
- Ingress protection: IP24D
- Material: PC/ABS; colour: red, RAL 3001
- Weight: 130 g (flush)
- Accessories: SC070 test keys (pack of 10), PS210 flexible element, PS200 hinged cover, SC071 terminal blocks (pack of 20)
