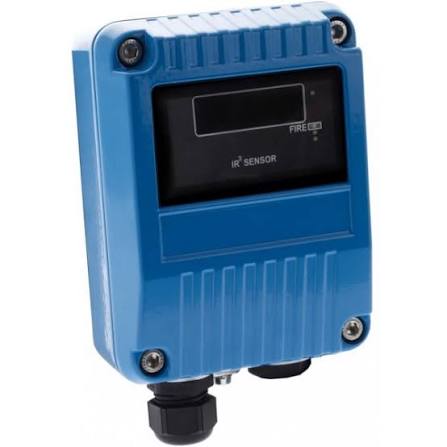

Talentum Flame Detector IR3 (16589-00)
The Talentum triple Infra-Red (IR³) Flame Detector is designed to protect areas where open fires may be expected and detects almost all flames, including hydrocarbon fires with 4.3 ?m emissions through to invisible fires such as hydrogen. The IR³ Flame Detector is sensitive to flickering, low frequency (1- 15Hz) infra-red radiation emitted by flames during combustion even if the lens is contaminated by a layer of oil, dust, water, vapour or ice.
This detector has three IR sensors which respond to different IR wavelengths in order to discriminate between flames and spurious sources of radiation. False alarms from flickering sunlight are avoided by a combination of filters and signal processing techniques. The Talentum IR3 detector has selectable output options of relay contacts or 4-20mA signal, as standard.
Key Features:
Excellent immunity to false sources
Tolerant of fumes, vapours, dust and mist
Suitable for indoor and outdoor areas
Unaffected by convection currents, draughts or wind
Proven response to multiple fuel types
Multi-spectrum detection
Selectable output options
Selectable response speed
Selectable sensitivity levels
Built in auto and manual test
Low current consumption
Fast response to fire
Applications:
Refineries
Compressor Stations
Fuel Loading Racks
Chemical Plants
Tunnels
Waste Recycling
Nuclear Power Sites
Storage Tanks
Engine Rooms
Spray Booths
Pharmaceutical Production
Military Applications
Marine Industry
Aircraft Hangars
Coal Handling
Printing
Petrochemical Offshore/Onshore
LNG/LPG Production
Biomass Storage and Handling
